Sumitomo Bakelite Co., Ltd.

Precision Epoxy Products
Epoxy Coating Powder

Products

product

SUMILITERESIN™ ECP is epoxy resin-based coating powder and has excellent reliability, workability and safety with good adhesive strength, heat resistance, electrical insulation and high mechanical strength.

Plant

  • Shizuoka Plant

Laboratories

  • High Performance Plastic Technology Development Laboratory

Features

Environment- friendly

  • Volatile organic compounds free
  • Waste saving with returnable powder

Good adhesive strength at coating

  • Good coating performance for complicated shapes
  • Coating thickness is adjustable with optimized coating condition

High performance coating layer

  • Excellent electrical insulation property and mechanical strength

Applications

Electrical and Electronic Equipment

Electronic and Electric Parts

motors
Example: Motors
xample: electronic components
Example: Electronic Components
Epoxy Resin Coating Powder with High Tracking Resistance
Epoxy Resin Coating Powder with High Tracking Resistance

Specifications

SUMILITERESIN™ ECP series products line-up for motor application

Feature ECP-251GF EX-1101GQ
Feature High Edge-covering on Steel Thin Coating
Current Application Insulation of Armature Slot Insulation of Small Motor Armature
Color Green Green
Standard Curing Condition 20min @ 200℃ 20min @ 200℃
Long Term Heat Resistance Class B Certification (UL746B) Class B Certification (UL746B)
Barcol Hardness 85 73
Glass Transition Temp(℃) 155 124
Coefficient of Linear Expansion (1/℃)≦Tg 4×10-5 5×10-5
Bending Strength (MPa) 90 94
Bending Modulus (GPa) 6.7 5.0
Dielectric Breakdown Voltage (kV/0.3mm) 10 18
Volume Resistivity (Ω･cm) 1×1015 1×1015
Dupont Impact Strength (cm) ≧50 45

The data given above are not guaranteed values.

SUMILITERESIN™ ECP series products line-up for electrical components applications

Item ECP-202F ECP-364AA
Features Low Temperature Curing
Flame Retardancy
Good Coating Smoothness 		High Reliability
HF Flame Retardancy
Strong Adhesion to Steel
Current Application Film Capacitor Ceramic Capacitor
Color Light Blue Blue
Standard Curing Condition 120min @100℃ or 60min @120℃ 30min @ 150℃
Flame Retardancy V-0 Certification (UL94) V-0 Certification (UL94)
Barcol Hardness 89 90
Glass Transition Temp (℃) 105 80
Coefficient of Linear Expansion (1/℃) ≦Tg 5×10-5 4×10-5
Bending Strength (MPa) 77 110
Bending Modulus (GPa) 9.1 11
Dielectric Breakdown Voltage (kV/mm) 34 38
Volume Resistivity (Ω･cm) 1×1015 1×1015

The data given above are not guaranteed values.

Example of Coating Method

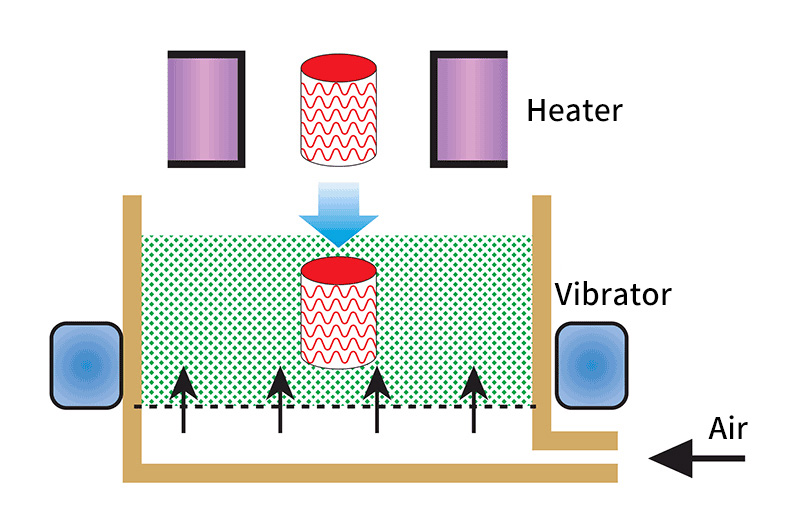

Fluidized bed coating

Advantage

  • Wide range of coating thickness: 0.2mm - 1.0mm by multiple dip coating
  • Pre-heating of devices is required
  • Suitable for large devices or impregnation required components such as
    motor coil fixation and large capacitors

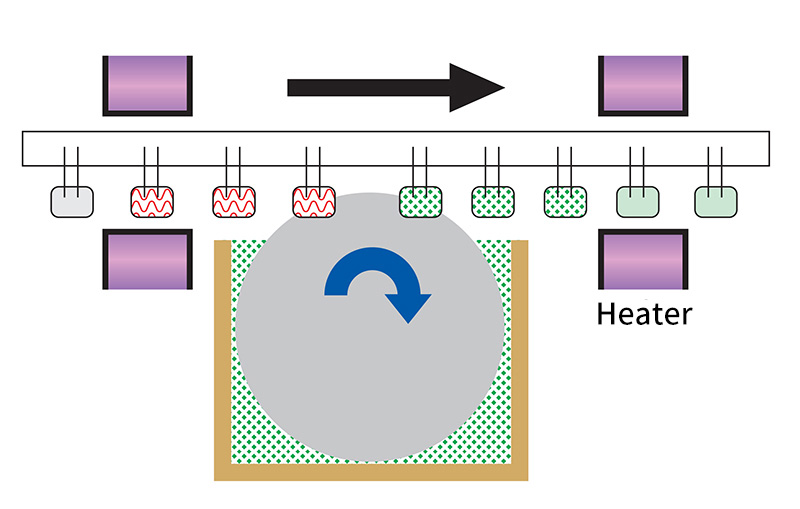

Fluidized wheel and bed coating

Advantage

  • Suitable for continuous coating for small components such as small capacitors
  • Pre-heating of devices is required

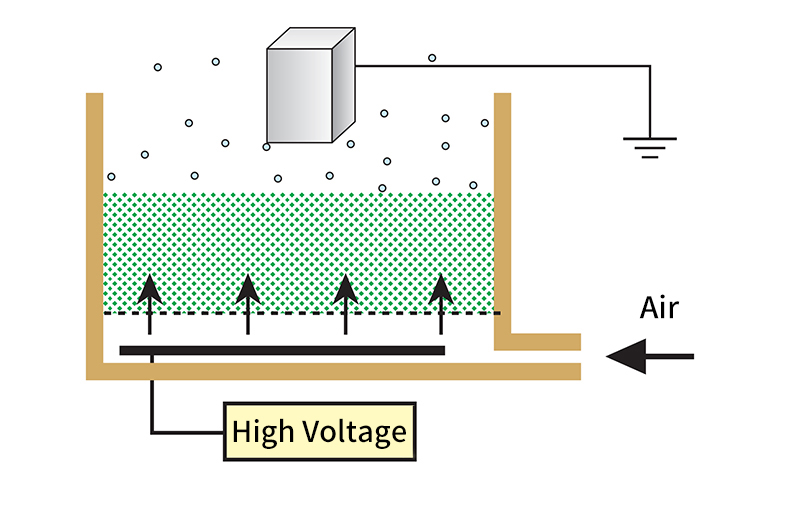

Electrostatic bed coating

Advantage

  • Available for 200 - 500 µm thickness
  • Pre-heating of devices is NOT required
  • Less powder adherence at concave area due to no electric line of force insertion
  • Suitable for small motors

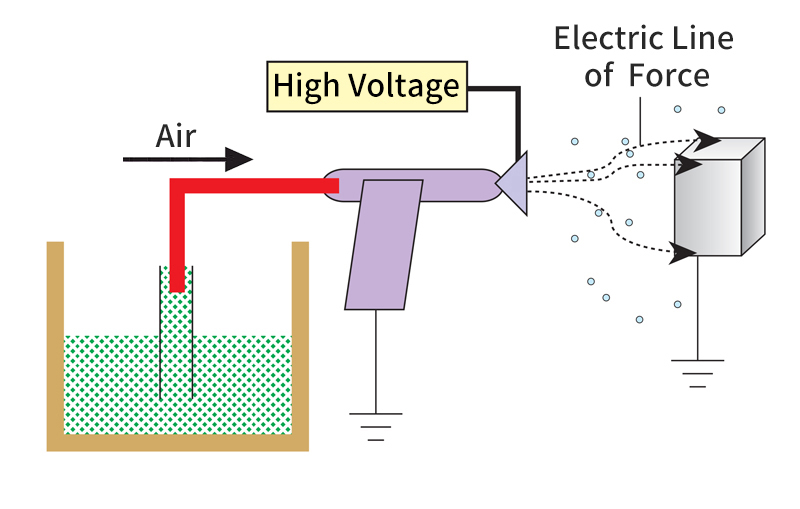

Electrostatic spray gun method with corona charging

Advantage

  • Available for 100 - 200 µm thickness
  • Pre-heating of devices is NOT required
  • Less powder adherence at concave area due to no electric line of force insertion
  • Suitable for large devices such as large motors and building materials.

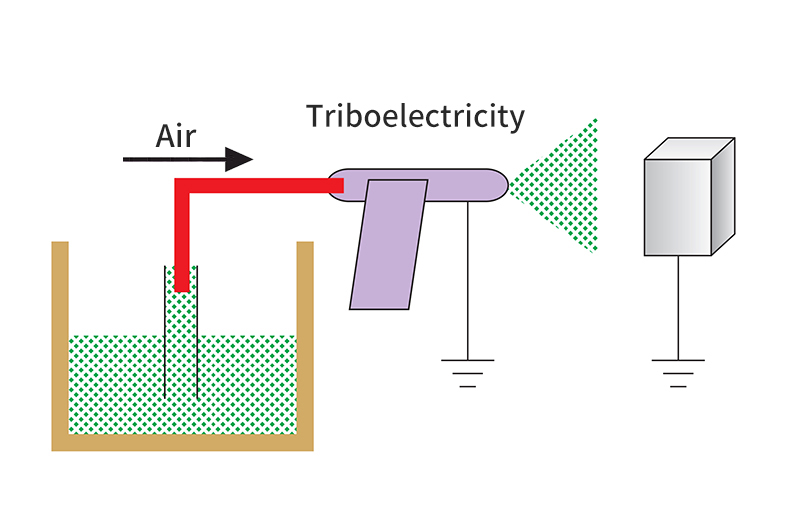

Electrostatic spray gun method with Tribo charging

Advantage

  • Available for 30 - 200 µm thickness
  • Less powder adherence at concave area due to no electric line of force
  • Coating layer quality is influenced by coating environment
  • Suitable for complicated shape devices such as micro motors
