MobilityMiniaturization and Light Weight
Achieved process reduction and structural freedom through phenolic resin molding,
contributing to the miniaturization and weight reduction of metal substitute parts.
- TOP
- Miniaturization and Light Weight

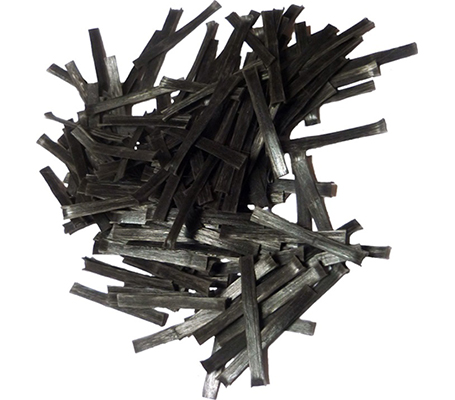

- Screw Injection moldable - Long fiber reinforced thermoset plastic molding compound
Screw Injection moldable - Long fiber reinforced thermoset plastic molding compound
Advantage
Phenolic long glass fiber compound
- High strength
- High modulus & Impact strength
DAP long glass fiber compound
- CTI 600V, High strength
- High modulus & Impact strength
| Thermoset plastic | Thermoplastic | Aluminum die cast ADC12 |
||||
|---|---|---|---|---|---|---|
| Phenolic LF GF8210 |
DAP LF Developing |
PA66 SF GF45 |
PPS SF GF40 |
|||
| Specific gravity [-] | 1.8 | 1.9 | 1.5 | 1.7 | 2.7 | |
| Charpy impact st. (Notched) [kJ/m2] | 21 | 13 | 13 | 9 | - | |
| Flexural st. [MPa] | 25℃ | 260 | 175 | 295 | 225 | 350* |
| 120℃ | 210 | 125 | 165 | 140 | - | |
| Flexural mo. [GPa] | 25℃ | 19 | 17 | 13 | 14 | 65 |
| 120℃ | 16 | 13 | 6 | 7 | - | |
* *D.2% yield

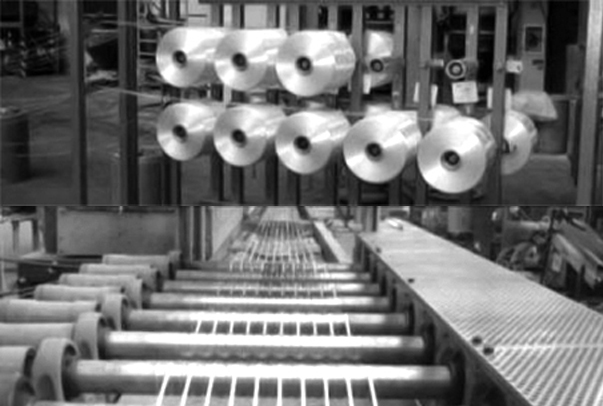

Long fiber compounding technology

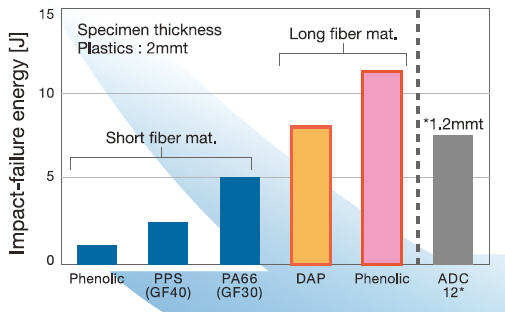

Compatible impact strength to aluminum die cast
Phenolic (LF)
PPS GF40
ADC12
* based on JIS K7211-2 Plastics - Determination of puncture impact behaviour of rigid plastics

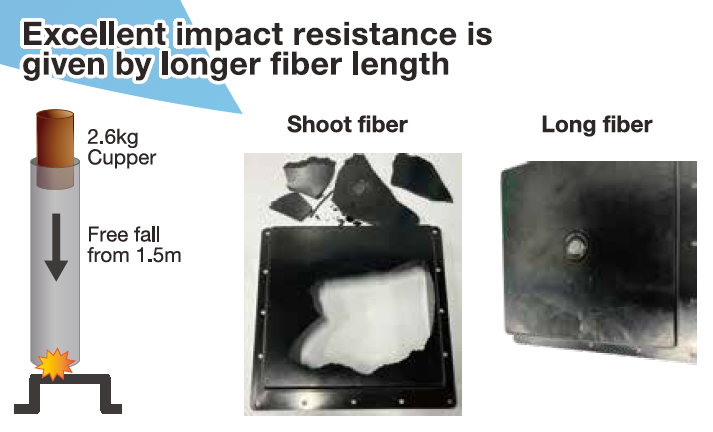

Excellent impact resistance is given by longer fiber length
Metal parts replacement with the toughened plastic material
Application examples

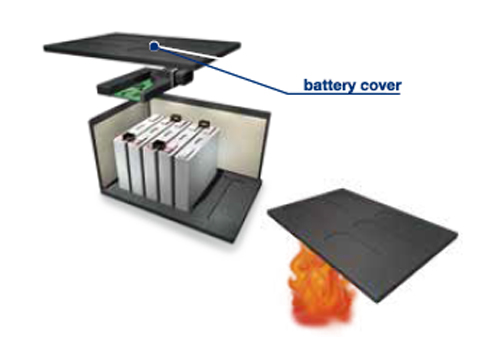

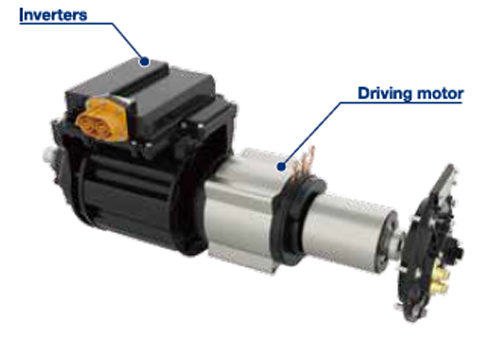

・Big electric component housing
・Structural member
