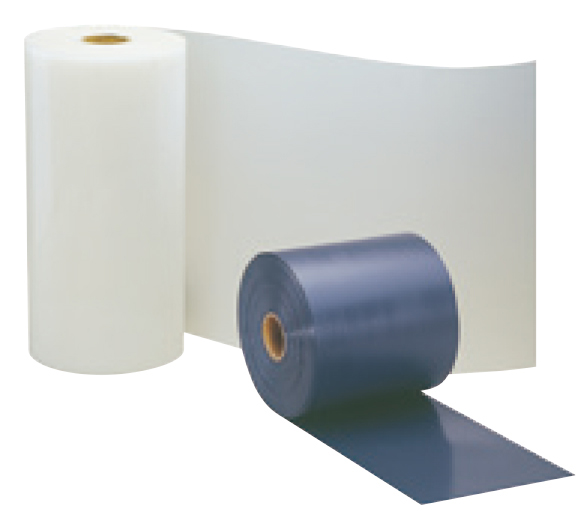

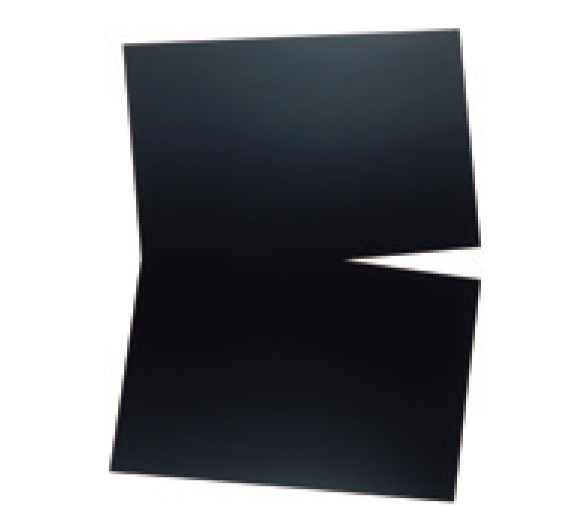

Flame Retardant PC Sheet for Insulation
Thickness from 0.05mm to 0.83mm, flame retardant sheet for electric insulation UL 94 Flammability: V-0, VTM-0
Advantages
- ①The Only CTI PLC:0 (600V or Over) Halogen-Free PC Sheet (V Series) [According to Our Research]
- ②Standard Anti-Static Treatment on Both Sides
- ③Design for Environment
(Compliance with Laws and Regulations) - ④Thinner Insulation Parts Possible Made by Vacuum Forming Than by Injection
- No Intentional Addition of PFAS* (V Series)
*Per- and Polyfluoroalkyl Substances - Compliance for ErP (Energy-Related Products) Directive, Lot 5
Standard
| VHF Series : | 0.41mm, 0.5mm, 0.83mm‒V-0 |
| PHF Series : | 0.05mm,
0.075mm‒VTM-2 0.1mm, 0.125mm, 0.15mm, 0.2mm, 0.25m‒VTM-0 |
Newly Added Products
*Scheduled to start in October 2026
EXQUA
| Thickness (mm) | |||||||||||||
| Surface | Color | 0.1 | 0.13 | 0.15 | 0.18 | 0.25 | 0.38 | 0.43 | 0.45 | 0.5 | 0.7 | 0.8 | 1 |
| Matte/Polish | Natural (clear) | ||||||||||||
| Matte/Velvet | Natural (clear) | ||||||||||||
| Matte/Velvet | Black | ||||||||||||
UL94 Flammability VTM-0 V-0
CARBO-GLASS Clear FR grade
The only transparent flame-retardant sheet manufactured in Japan to obtain VTM-0/V-0（*According to our research）
| Thickness (mm) | |||||||||||||
| Surface | Color | 0.1 | 0.13 | 0.18 | 0.25 | 0.38 | 0.5 | 0.7 | 0.8 | 1 | 1.2 | 1.5 | 2 |
| Matte/Polish | Natural (clear) | ||||||||||||
| Matte/Velvet | Natural (clear) | ||||||||||||
| Matte/Velvet | Natural (clear) | ||||||||||||
UL94 Flammability VTM-0 V-0
*With the transfer of AGC lnc.’s polycarbonate business, the above products will be sold under the UL file number inherited.
Example Applications

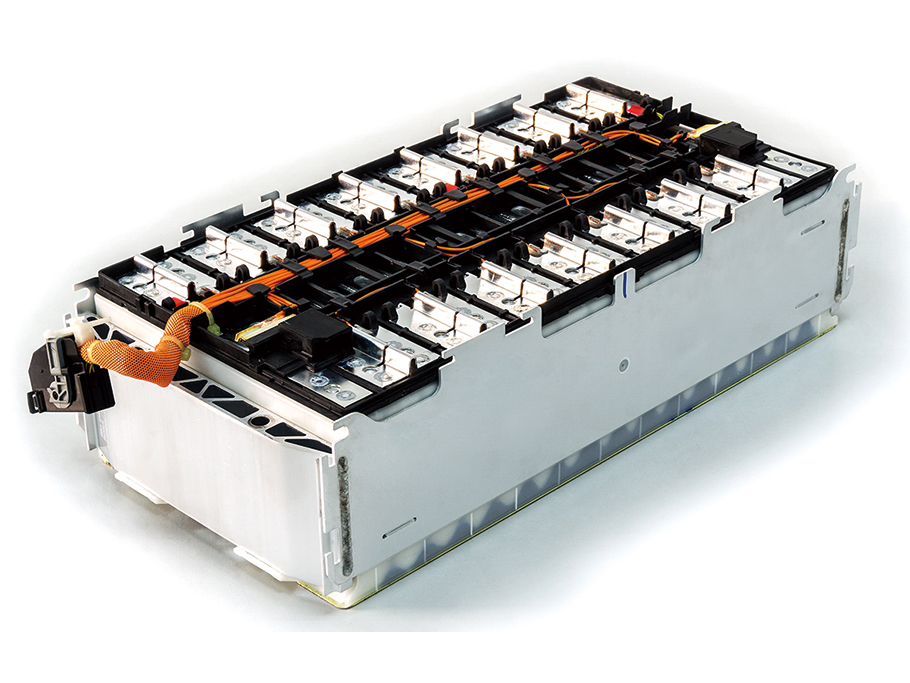

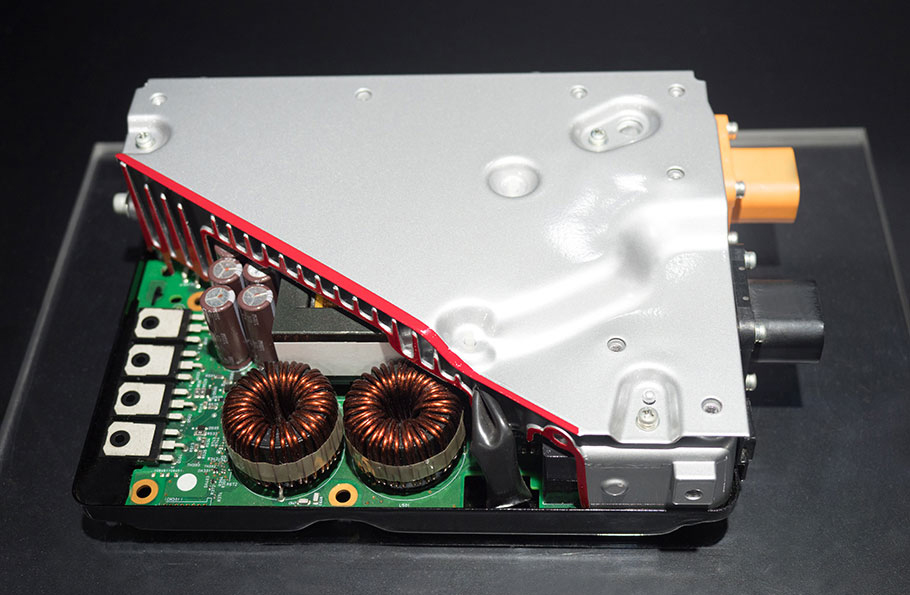

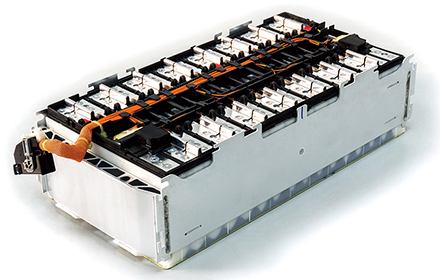

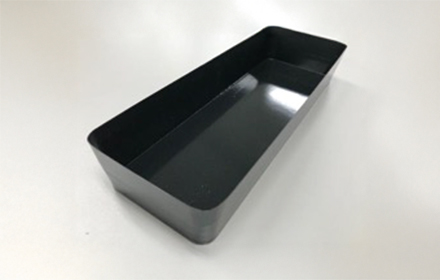

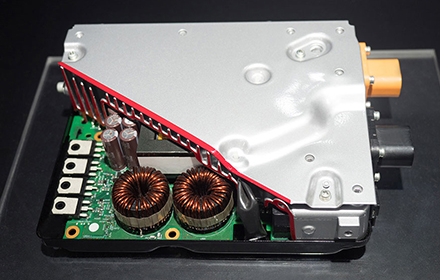

Insulation Sheet for OBC, Inverter, Converter of EV

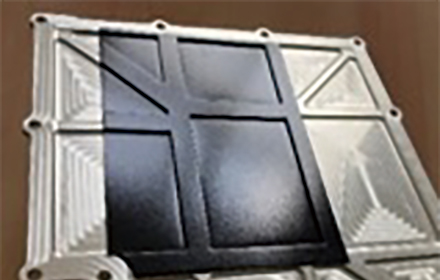

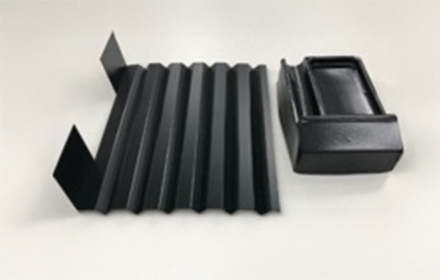

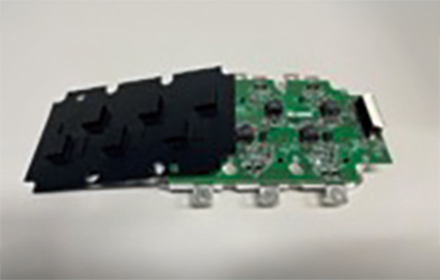

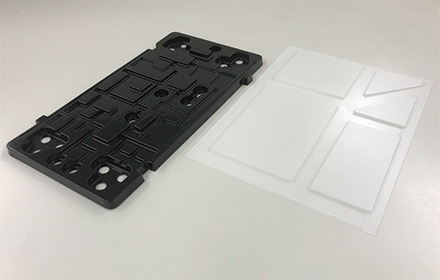

Insulation Parts Near PCB

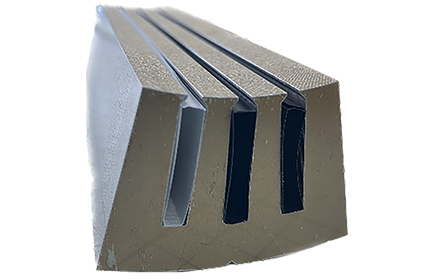

Insulation In The Motor
