High-inslulation & Hight-Heat-Resistant Diallyl Phthalate Resin Molding Compound
Combining Tracking Resistance and Heat Resistance to Meet the Needs of Higher Voltage Applications
Advantage
Combining Tracking Resistance and Heat Resistance
Comparison with Other Resins

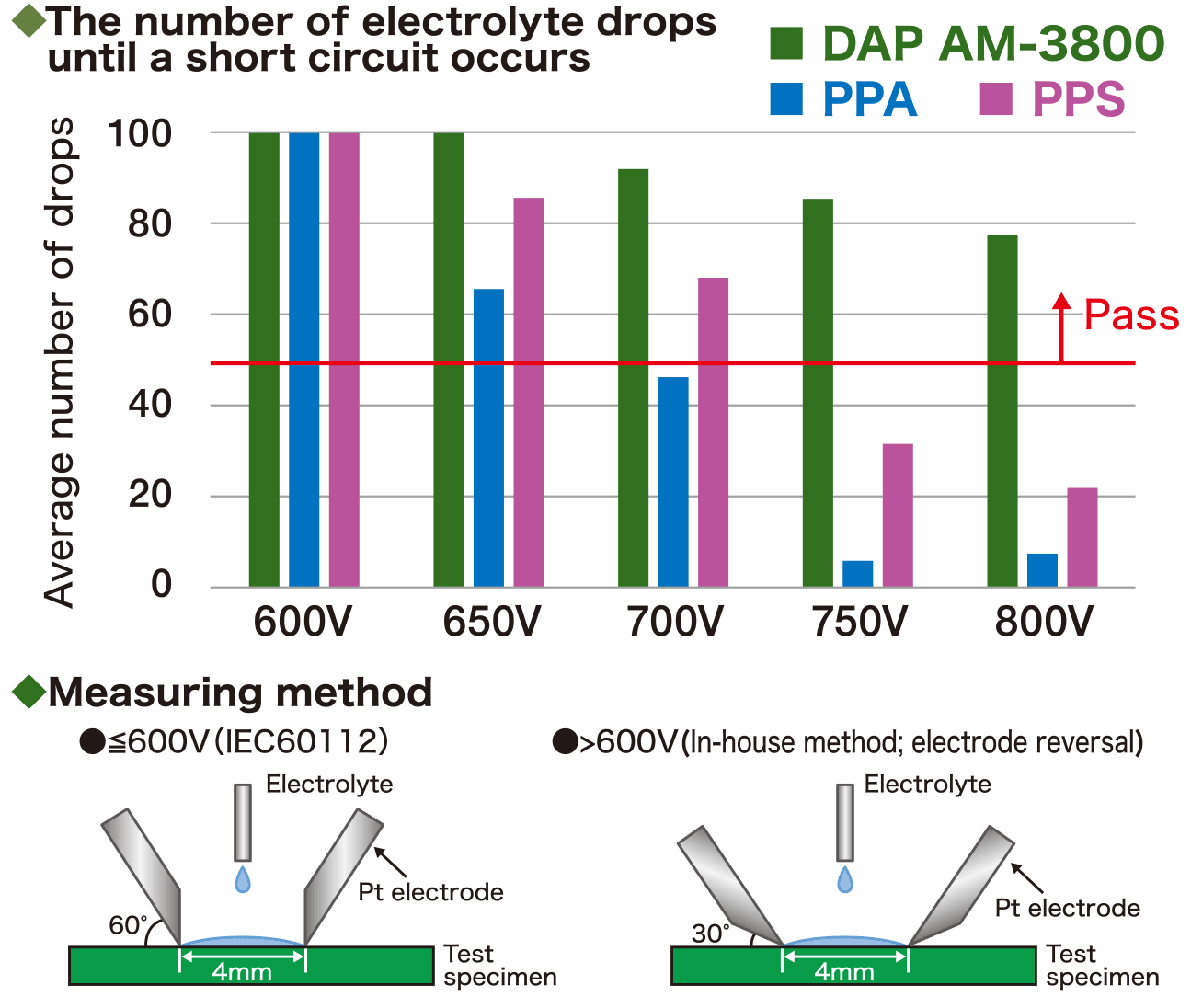

Tracking Resistance
Excellent Moisture Resistance and Heat Deterioration Resistance
| Long-Time Reliability After 2000hr of Heat Treatment |
AM-3800 (Developed grade) |
PPS (CTI600V) |
PPA (CTI600V) |
| Moisture Deterioration Resistance:85℃×95% | |||
| Tracking resistance (800V) | ◎ | △ | △ |
| Dielectric Strength Voltage | ◎ | ◎ | ◎ |
| Volume Resistivity | ○ | ○ | × |
| Mechanical Strength | ○ | ○ | ○ |
| Heat Deterioration Resistance: 160℃ | |||
| Tracking Resistance (800V) | ○ | × | × |
| Dielectric Strength Voltage | ◎ | ◎ | ◎ |
| Volume Resistivity | ◎ | ◎ | × |
| Mechanical Strength | ◎ | ◎ | × |

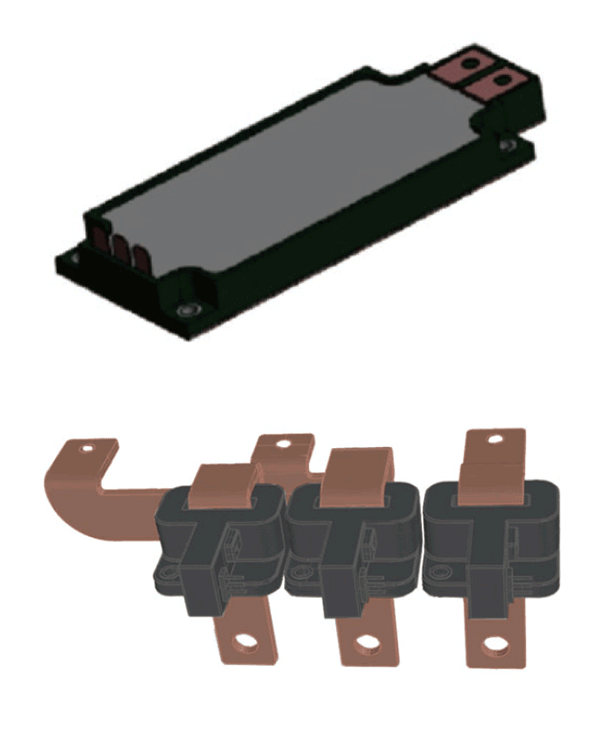

Good Injection Moldability Enables the Molding of Thin-Walled Parts

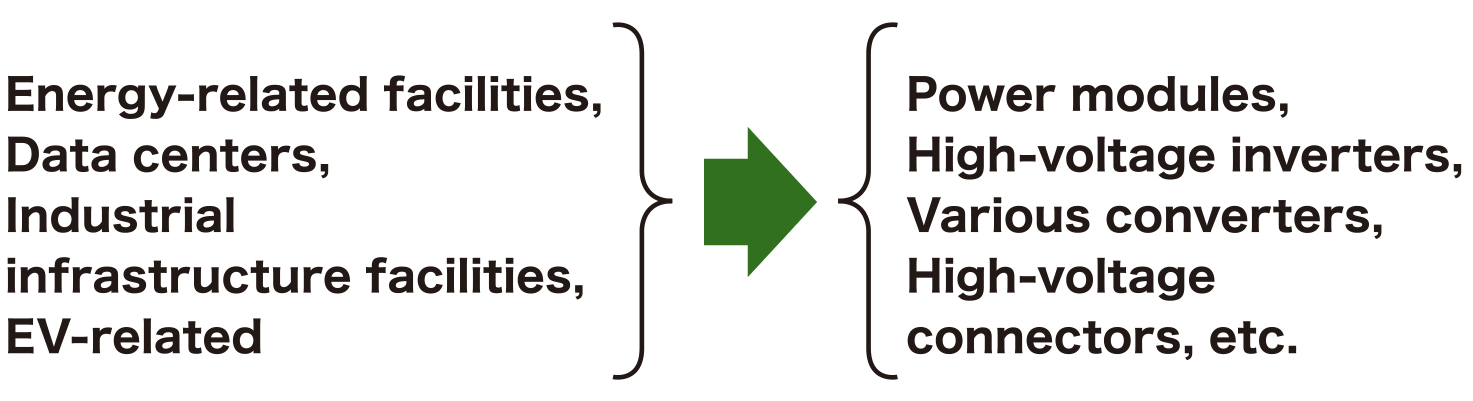

Anticipated Application Fields and Components
