In the connected and AD/ADAS fields, it supports the enhancement of
sensing functions and high-speed communication from the material aspect.

Stretchable electrode and wiring material DuraQ®

Add high tear strength to silicone rubber inherent superiority Flexible and stretchable electrodes and wiring materials are also available by adding conductivity.

Advantage

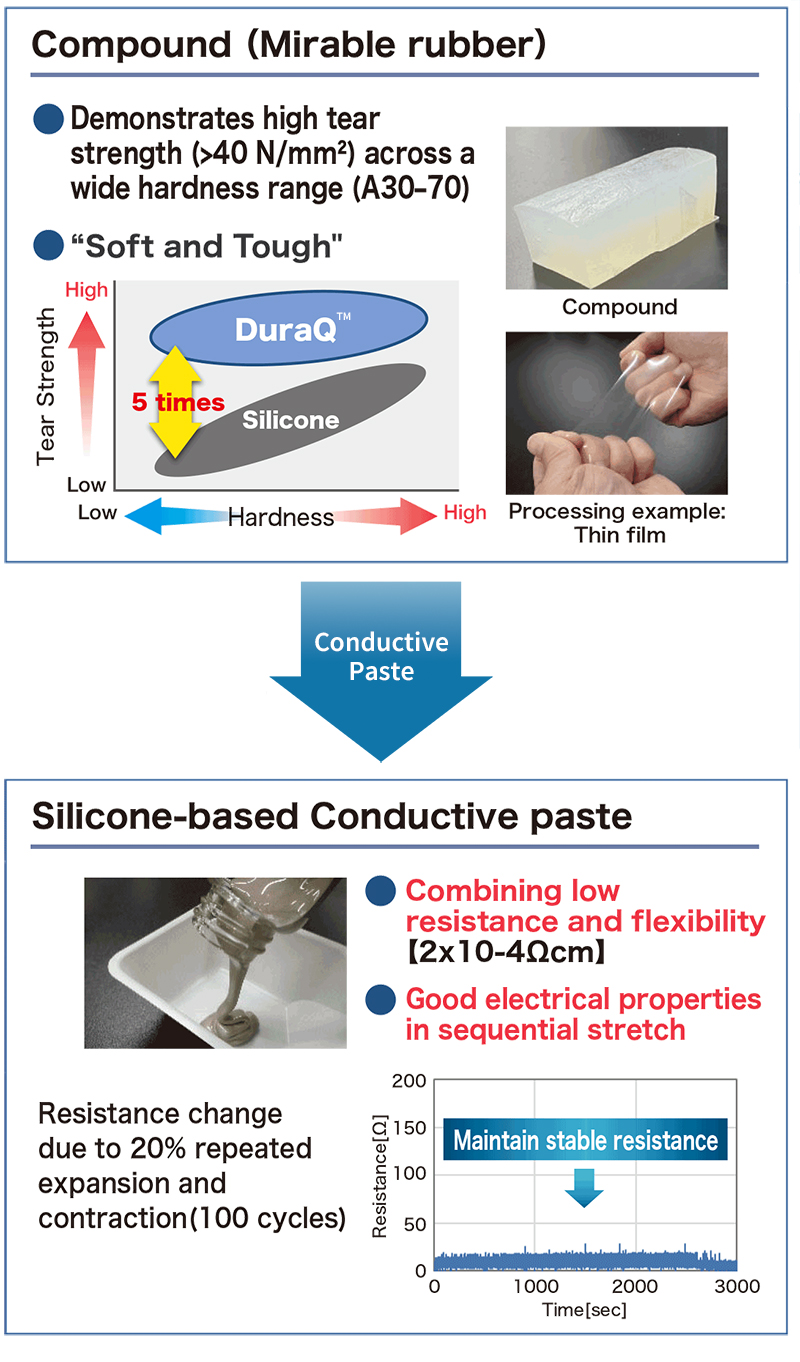

Compound

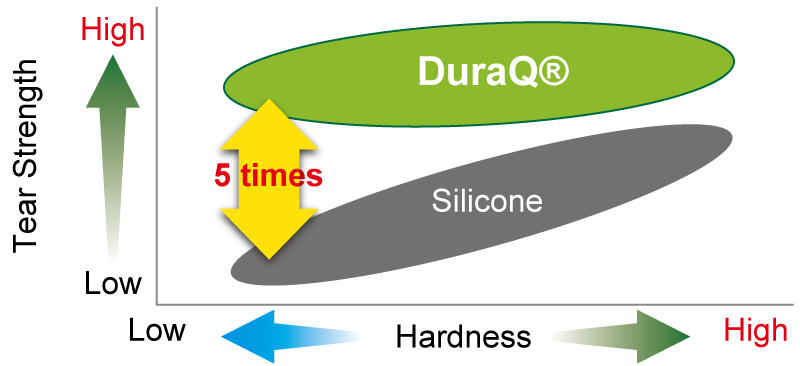

  • High strength
    (>40N/mm) in wide-range of hardness (30~70 (Type A))
  • "Soft and Tough"
Silicone-based pastes
  • High thermostability
     (hot & cold) and Stretchability
  • Good electrical properties in sequential stretch

Stretchable circuit data

Resistivity 2x10-4 Ω・cm​
Rate of Resistance change 50% Stretch 2.0 times
50% Stretch 100 times 2.0 times

Resistance to 50times washing
of wiring board

Core technology

Compound

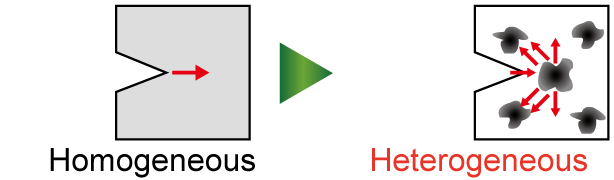

Point : Formation of Heterogeneous Structure

Control of silica filler-polymer chain interaction

Control of crosslink density

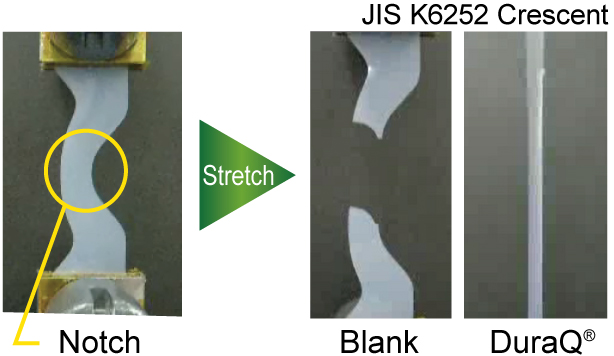

Inhibition of
crack growth & crack diffusion

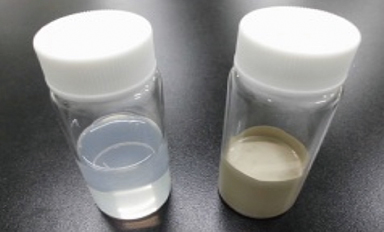

Silicone-based pastes

Point : Conductive path
by filler orientation

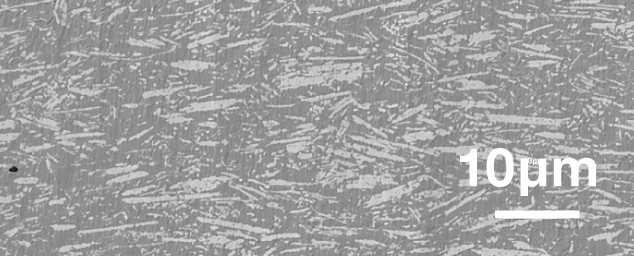

Cross-section view

Formulation technology
of conductive filler

Excellent electrical properties
in sequential stretch

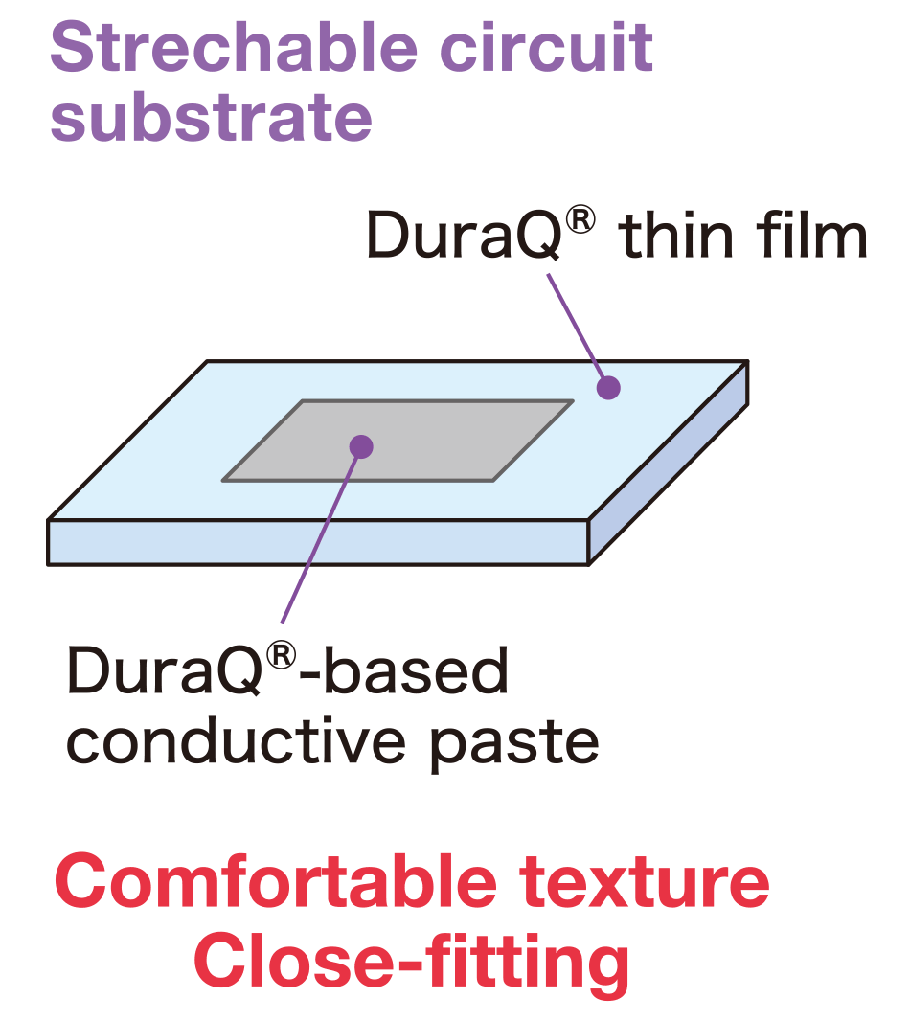

Application examples

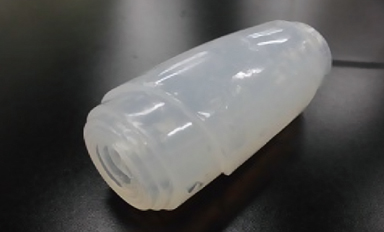

Forming
Measurement
Application

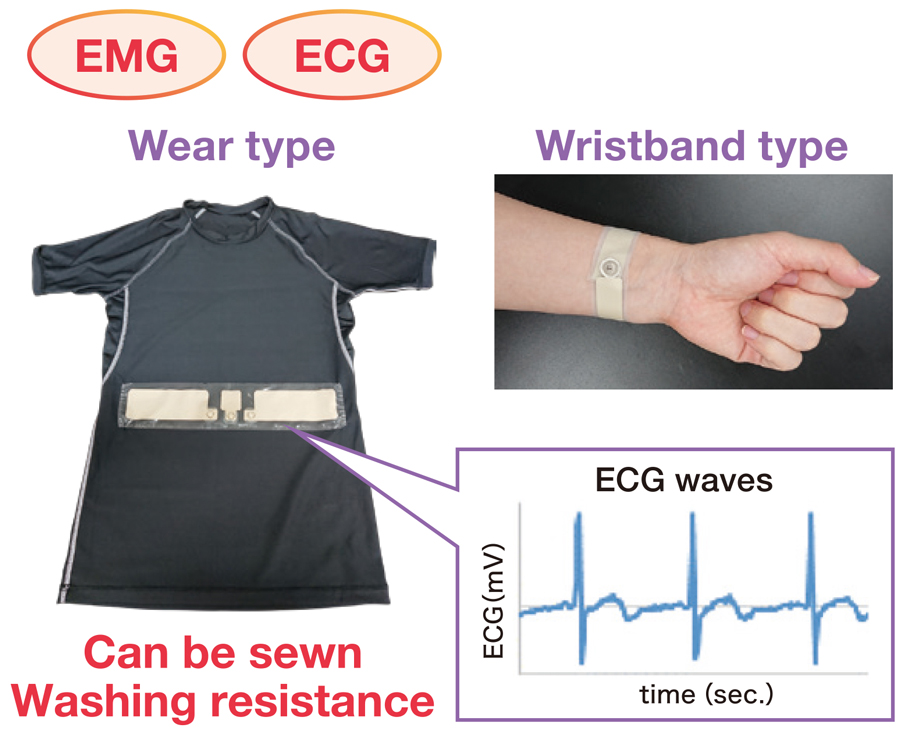

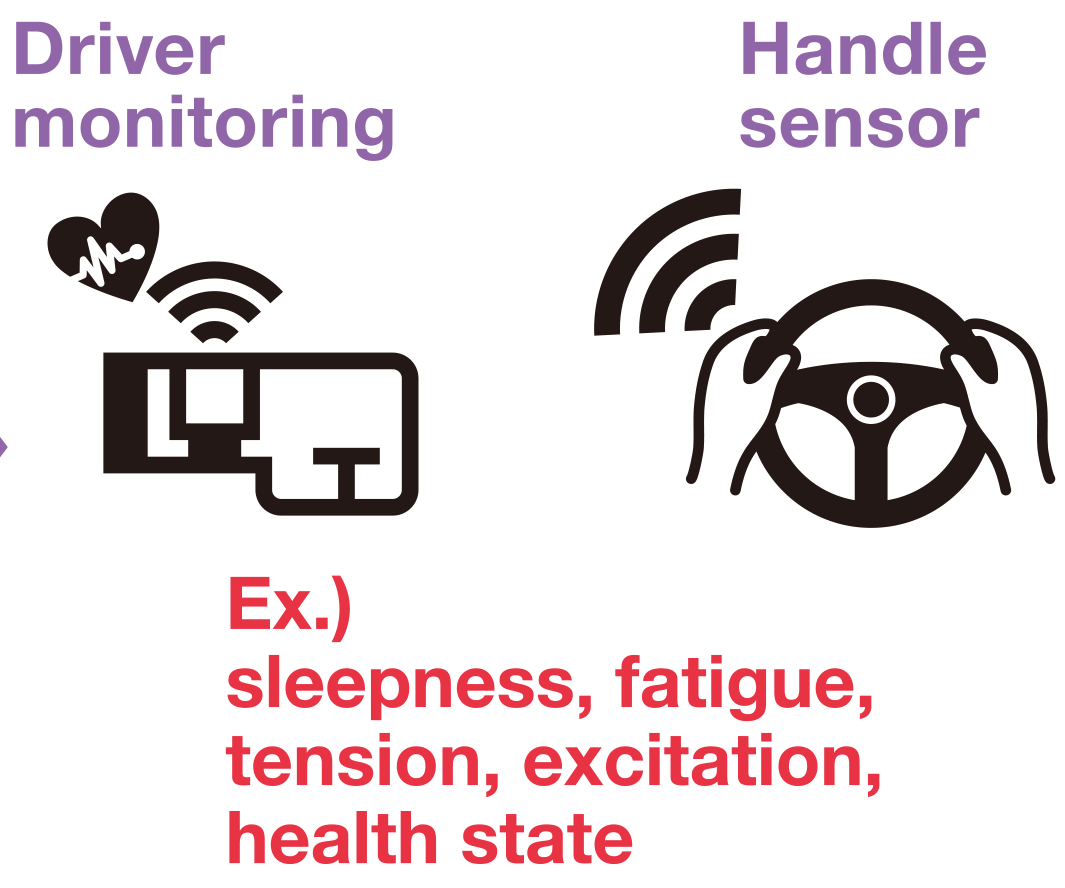

Driver vital monitoring
