In the connected and AD/ADAS fields, it supports the enhancement of
sensing functions and high-speed communication from the material aspect.

Contract Analysis & Testing Service


Please Feel Free to Inquire Regarding Analysis and Testing for Automotive Materials.

Example

Weathering Test
We Can Provide Various Accelerated Weathering Tests.

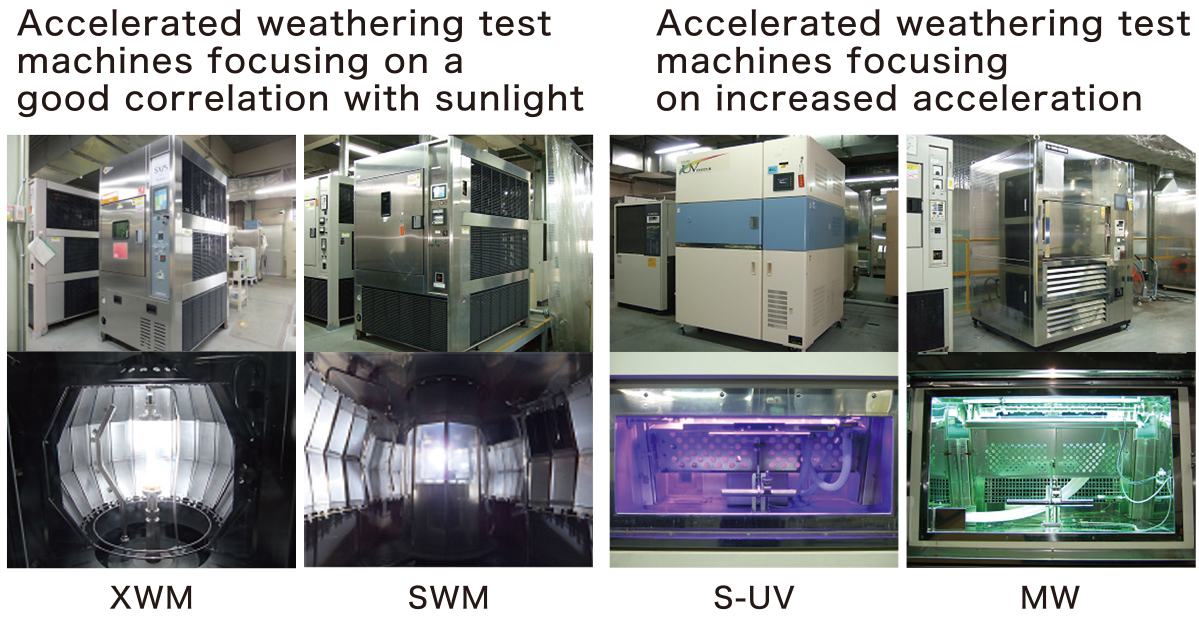

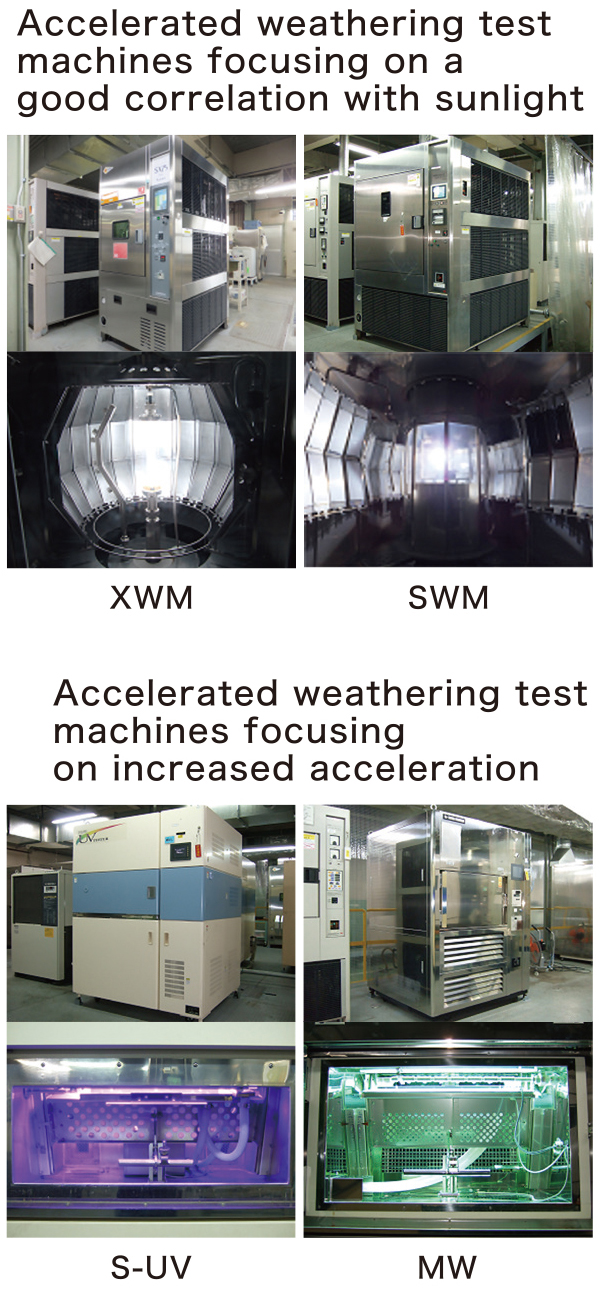

Accelerated weathering test
machines focusing on a good correlation with sunlight images/Accelerated weathering test machines focusing
on increased acceleration Accelerated weathering test
machines focusing on a good correlation with sunlight images/Accelerated weathering test machines focusing
on increased acceleration

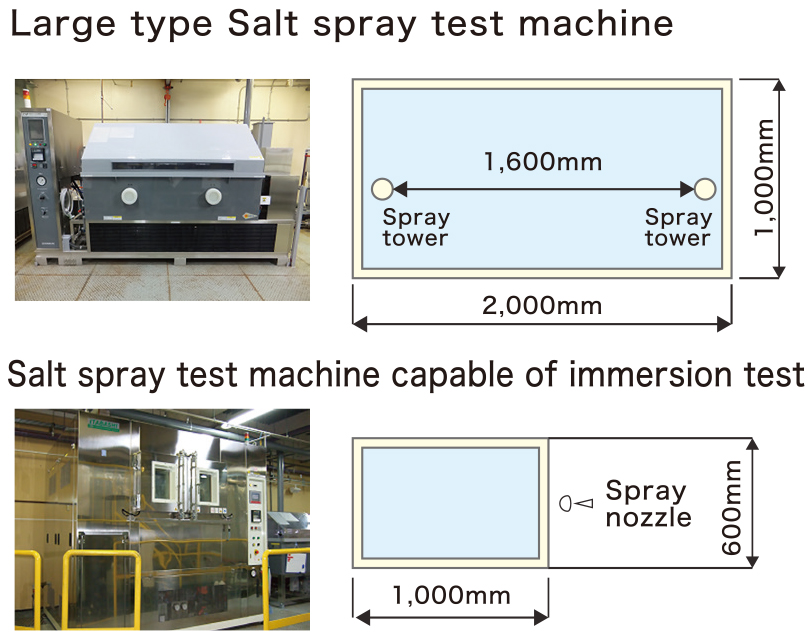

Salt Spray Test
We Can Test Large Samples in Salt Spray Test.
We Can Also Provide Salt Water Immersion Test.
Various Accelerated Weathering Tests Are Possible.
Salt Spray Testing of Large Samples Is Possible, and Salt Water Immersion Test Is Also Possible.
Fatigue Test

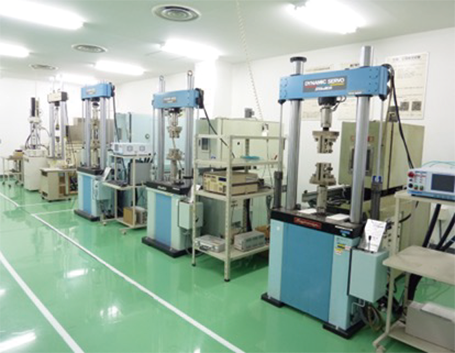

Fatigue Testing Machine
Tensile Fatigue Test Specifications
Max. Load ±100kN
Max. Displacement ±50㎜
Frequency 1.0×10-5 ~ 30Hz
Control Method Load Control Displacement Control
Temperature -60~300℃
(Humidity Control Is
Also Possible.)

Tests in Compression and Flexural Modes Are Also Possible.
By Creating a Jig, It Is Possible to Test Samples of Various Shapes.

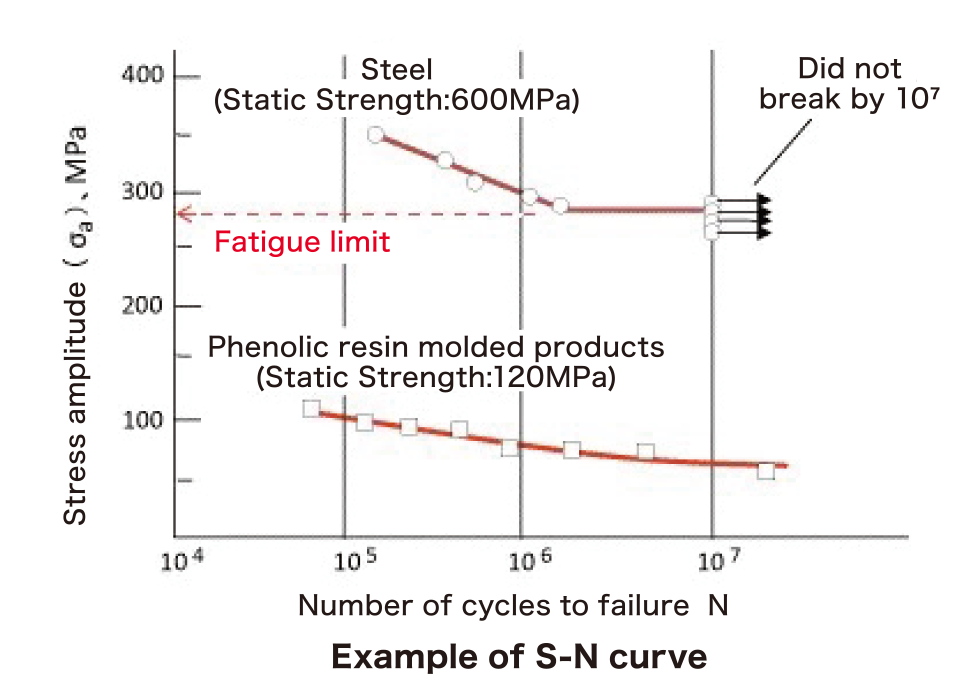

Example of S-N Curve
Fatigue Test Is Possible Over a Wide Range of Temperatures and on Samples of Various Shapes.
Strain Measurement Using Digital Image Correlation Method

Random patterns on the sample surface is captured as a digital image, and deformation and strain are measured without contact by tracking and comparing the patterns before and after deformation of the sample.

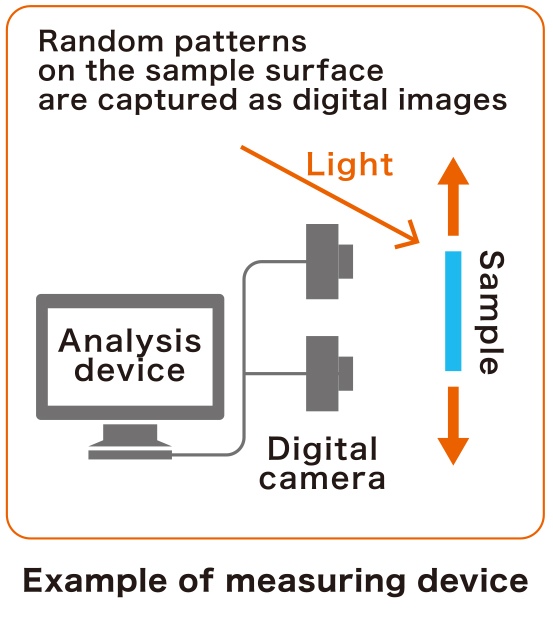

Example of Measuring Device
It is possible to measure strain of films and soft samples that cannot be measured with a strain gauge.

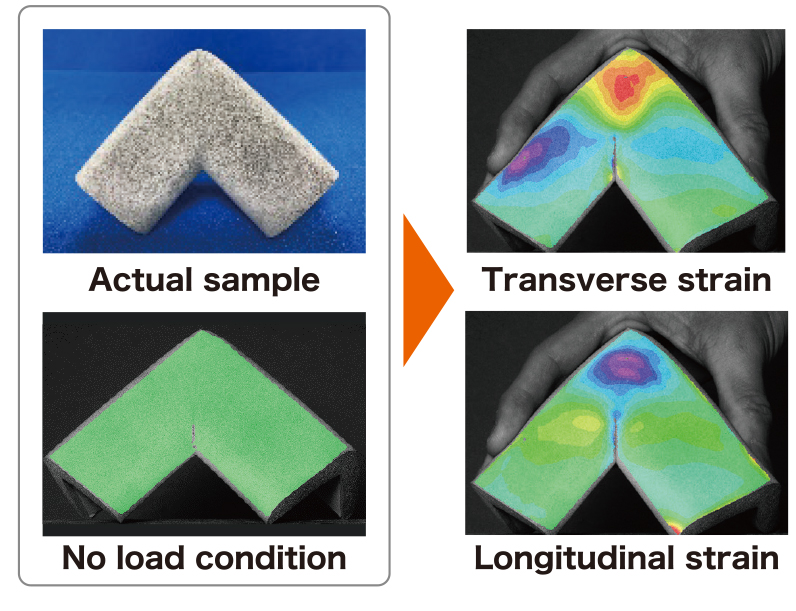

Strain at an Arbitrary Part
Can Be Analyzed.

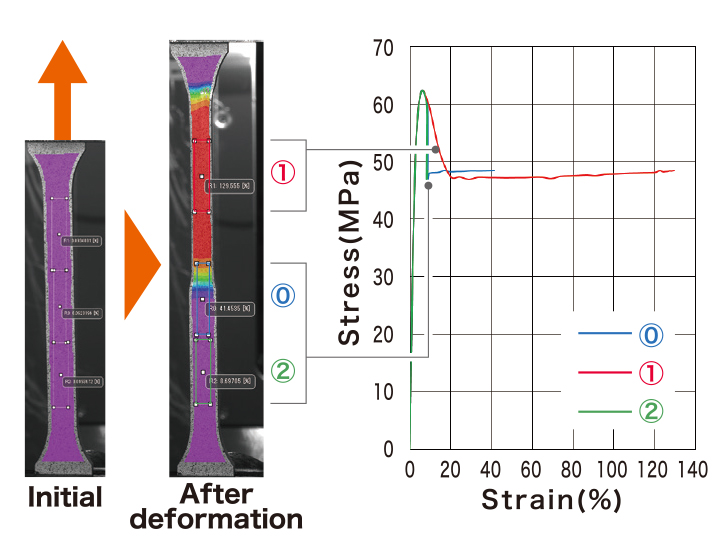

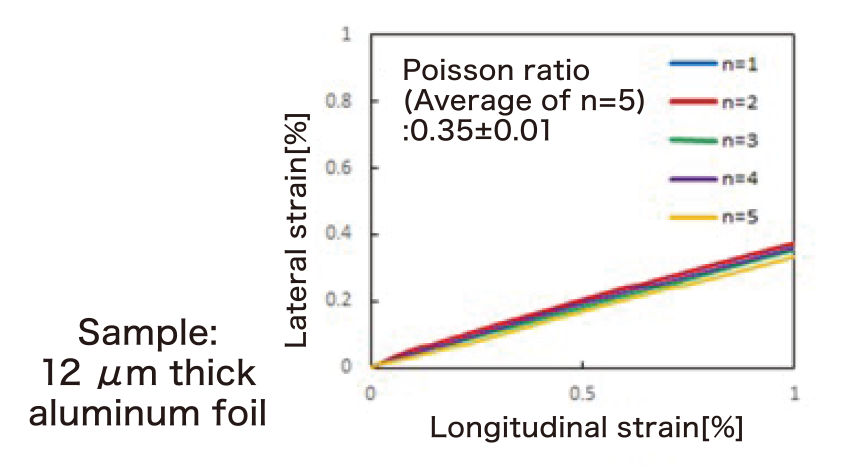

Example: Measuring Longitudinal Strain on a Specimen

It Is Possible to Measure Strain of Films and Soft Samples That Cannot Be Measured With Strain Gauge. Strain at an Arbitrary Part Can Be Analyzed.
