High Dimensional Accuracy
Phenolic Molding Compound SiON®
We Continue Challenge for Realization of
"Non-machining process" which has been Hoped
for Long Time.
Advantage
- Excellent dimensional accuracy in continuous molding process
- Low dimensional change in environment for use
- Low CTE
- Low anisotropy
- Collarless is possible by high creep resistant

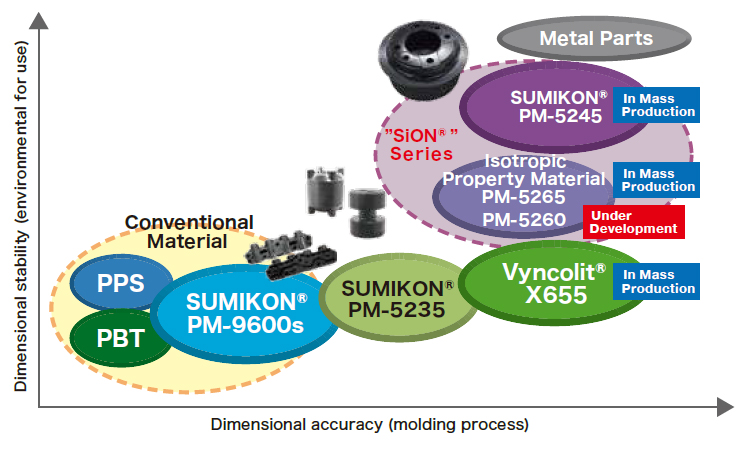

Core technology
Diemnsion Accuracy
| Grade | PM-5245 | PM-5265 (Development material) |
PM-9640 | |
|---|---|---|---|---|
| Characteristic | Dimensional stability | High dimensional accuracy Low specific gravity |
GF reinforced | |
| Specific gravity | - | 2.03 | 1.90 | 1.78 |
| Molding Shrinkage | % | 0.24 | 0.30 | 0.28 |
| CTE (MD/TD) | ppm/K | 13/14 | 16/18 | 14/30 |
| Flexural strength | MPa | 180 | 180 | 225 |
| Flexural modulus | GPa | 23 | 18 | 16 |
| Tensile strength | MPa | 110 | 110 | 140 |
| Compressive strength | MPa | 360 | 340 | 320 |
| Charpy Impact strength | kJ/m2 | 3.0 | 3.0 | 5.2 |
| Item | Dimension of mold | PM-5245 | PM-9640 | ||
|---|---|---|---|---|---|
| Dimension of molding part | Dimension of molding part | ||||
| Average | σ | Average | σ | ||

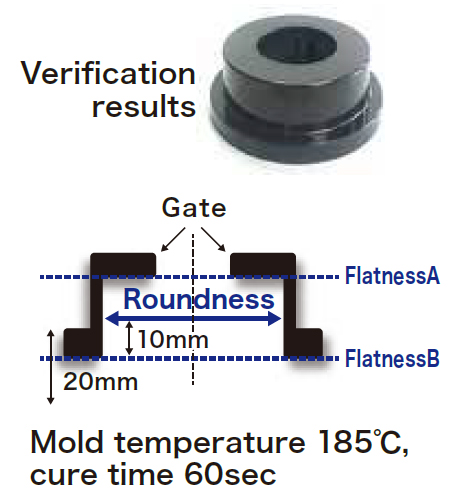

| Inner diameter | 68.070 | 67.852 | 0.002 | 67.791 | 0.009 |
| Circularity | 0.005 | 0.007 | 0.002 | 0.022 | 0.003 |
| Flatness A | 0.002 | 0.019 | 0.002 | 0.054 | 0.007 |
| Flatness B | 0.002 | 0.015 | 0.001 | 0.050 | 0.005 |
| Cylindricity | 0.008 | 0.017 | 0.002 | 0.049 | 0.006 |
Application example

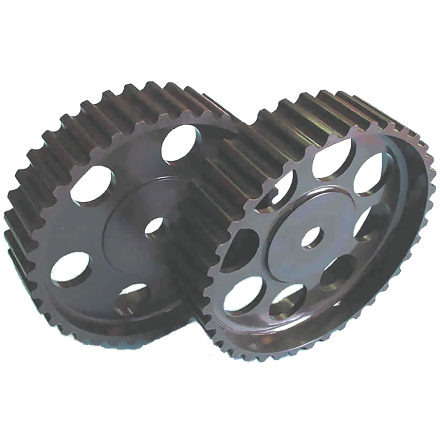

Timing pulley

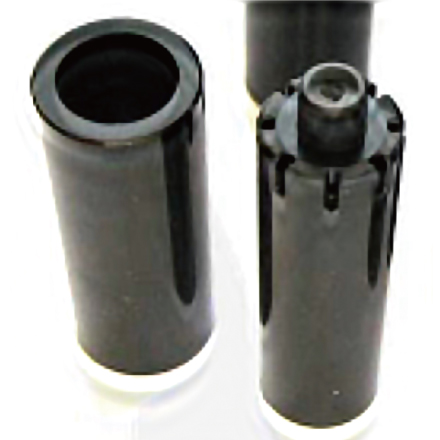

Master cylinder piston

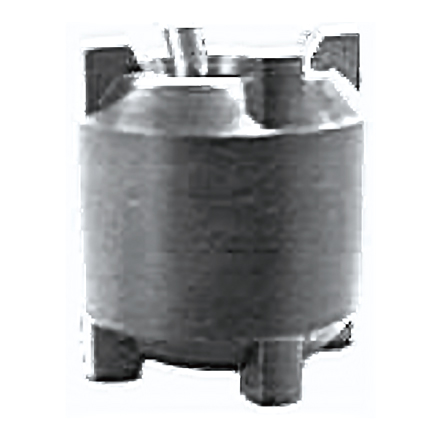

Sleeve

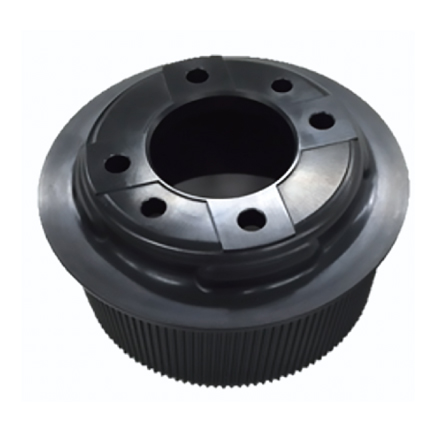

EPS pulley
