IoTRobotics
Contribute to realize advanced product design
in the field of robotics & mechanics

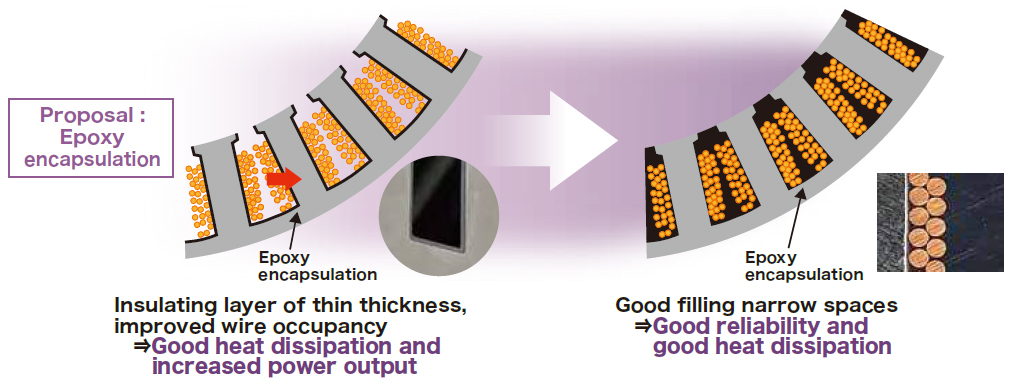

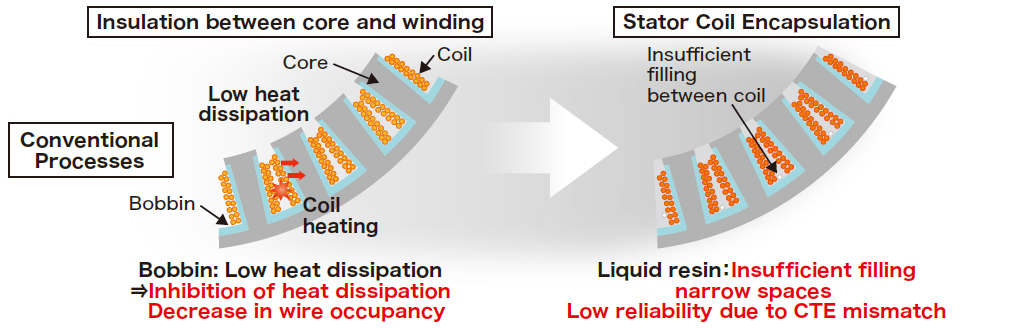

Molding Compound for Stator Coil Encapsulation
Contributing to the improvement of reliability
and functionality of industrial motors
such as servo motors.
Advantage

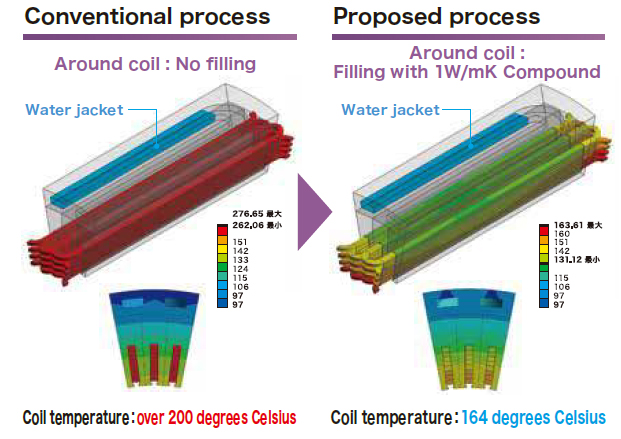

Cooling effect (150kW simulation)
Simulation conditions
Inside heat: 110 [W/slot]
Coolant: Ethylene glycol water 50%
Input flow rate: 0.6 [(kg/min)/slot]
Liquid temperature: 65 [℃]
Efficiently dissipation of
the heat generated in the coil
→ Coil temperature reduction
Application example

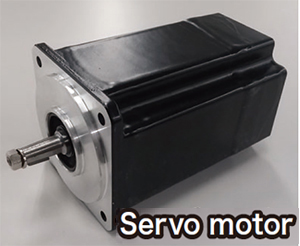

Servo motor

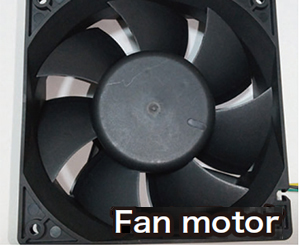

Fan motor
