High Reliability Epoxy Coating Powder
for Electric Insulation (Under Development)
Powder with excellent heat-cycle resistance, thermostability, and toughness.
Features
Features of Developed Powder with High Reliability
- Lower pyrolysis at high temperatures
- Excellent heat cycle resistance of coated electric parts
- High electric insulation
- Appearance of coated electric parts is beautiful

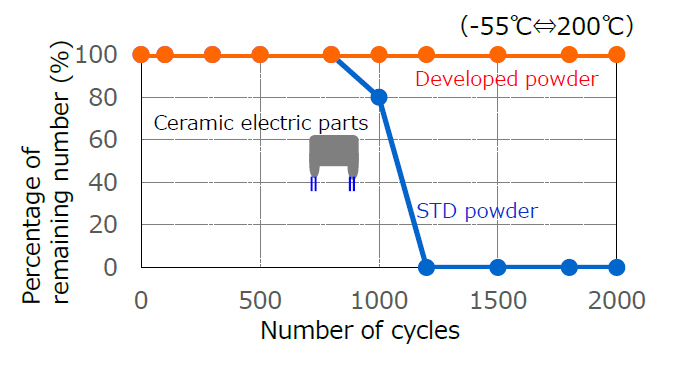

Heat cycle resistance of coated ceramic electric parts

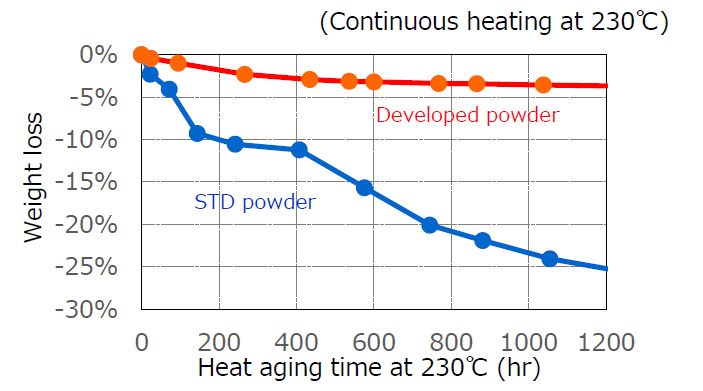

Pyrolysis difficulty of cured material
Properties of cured material
| Properties | Unit, Condition | Developed products |
|---|---|---|
| Tg | ℃, TMA | 130 |
| C.T.E. | ppm (<TG/>TG) | 23/82 |
| Flexural strength | MPa | 80 |
| Tensile share strength | MPa w/Cupper | 10 |
| Dielectric breakdown voltage | kV/mm | 25 |
| Volumeresistivity | Ω·cm | 1×1015 |
These are representative values, not specification.

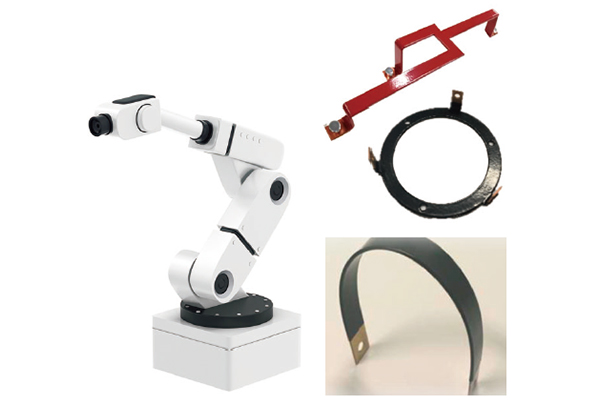

Applications
For Bus bar

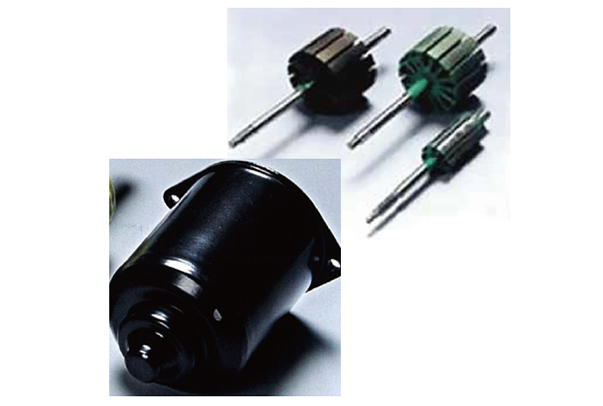

For Motor

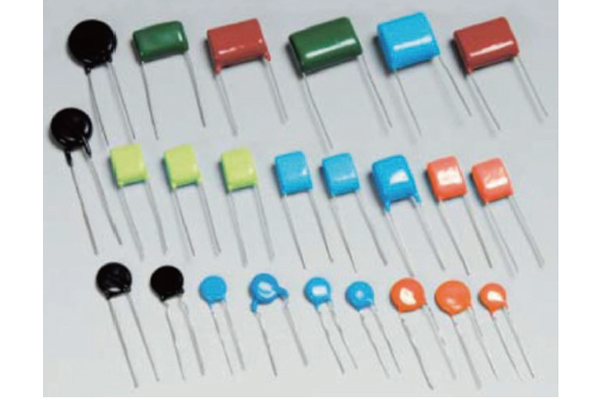

For Electronic parts
