IoT5G/IoT
Provide reliable materials to support
high-speed & high-capacity communications
Non-Halogen Series Flame Retardant Polycarbonate Film for Electric Insulation
Flame-Retardant PC film for insulation
with a thickness of 0.05-0.83 mm
UL 94 V-0, VTM-0 certified
Types of products

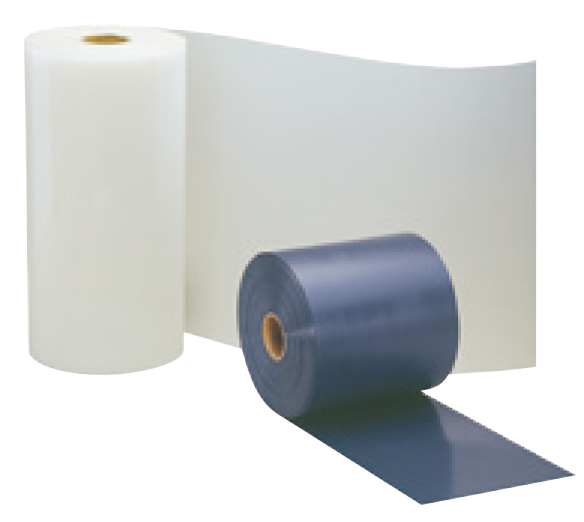

roll: 600 mm Width×100-600 m

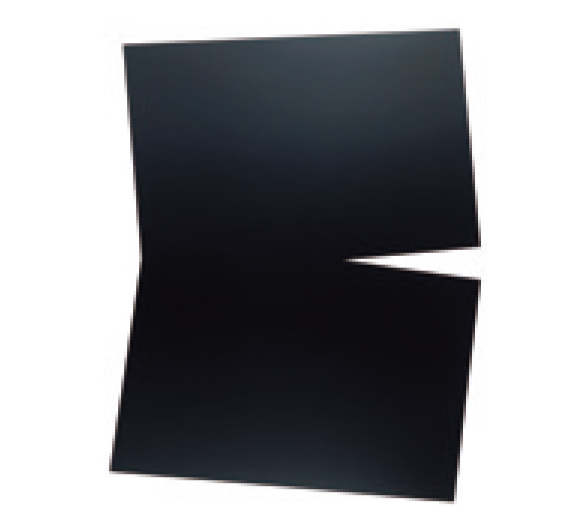

cut sheet: 600×1200 mm
Advantages
(1) The only non-halogen FR PC with UL CTI: 0 (600 V or more) (V-Series) ※according to our research
(2) Antistatic treatment is standard in all lineup
(3) Design for Environment (Compliance with laws and regulations)
(4) Thin insulating part can be made by vacuum forming
- No intentional addition of PFBS* (V-Series)
*PFBS: One of SVHC, which was added JAN 2020 as 22nd revision - Compliance for ErP (Energy-related Products) directive, Lot 5
Standard products
| Article No. | Color | Thickness (mm) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.05 | 0.075 | 0.1 | 0.125 | 0.15 | 0.2 | 0.25 | 0.41 | 0.5 | 0.83 | |||
| PHF | PHF150MAB | Half clear | VTM-0 | VTM-0 | ||||||||
| PHF850MAB | Black | VTM-0 | VTM-0 | VTM-0 | ||||||||
| PHF860MAB | Black | VTM-2 | VTM-2 | VTM-0 | VTM-0 | |||||||
| VHF | VHF150MAB | Natural | V-0 | V-0 | ||||||||
| VHF850MAB | Black | V-0 | V-0 | V-0 | ||||||||
Applications

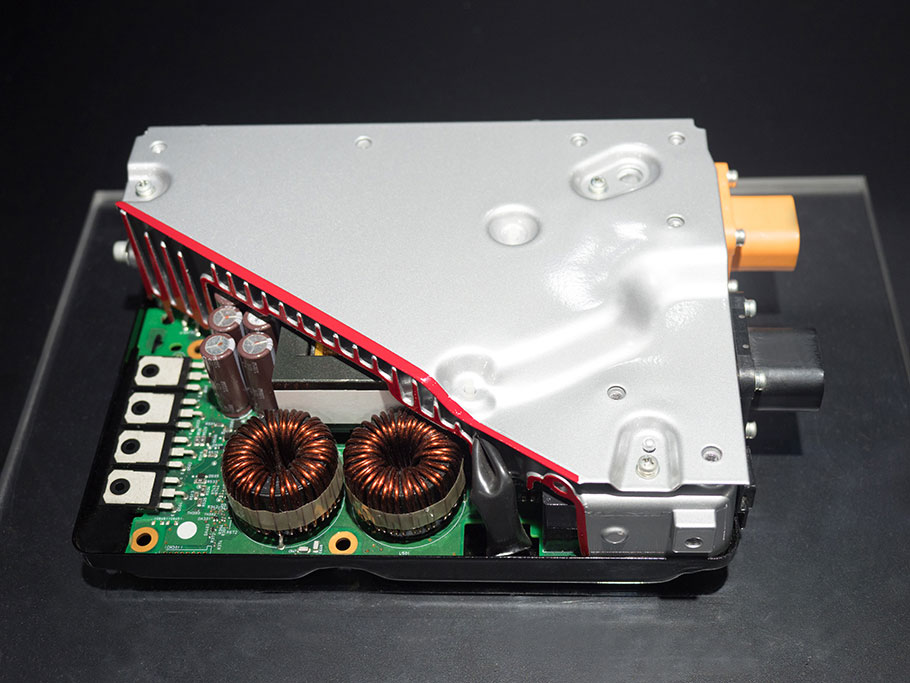

In-vehicle onboard charger inverter, Converter internal insulation
Power conditioner

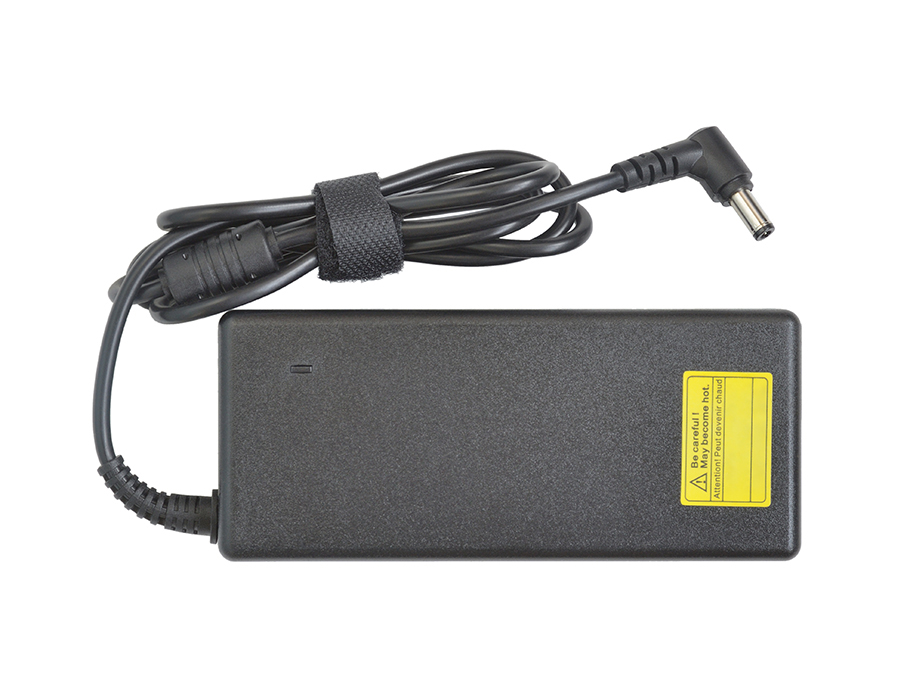

AC adapter
