High Thermally Conductive Insulation
Reliable and high thermal conductive materials are made based on our own formulas and production techniques.

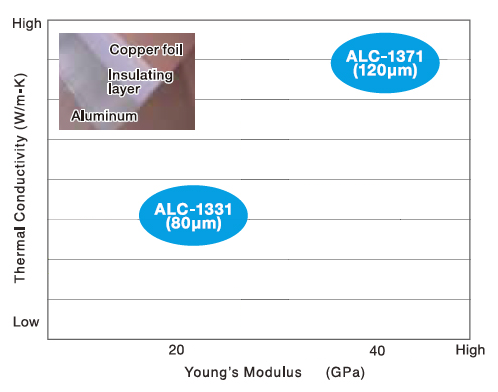

Metal Base Substrate (7W/3W)
Our lineup includes various grades, from high thermal to low thermal
| Test items | Conditions | Unit | ALC-1371 (120μm) |
ALC-1331 (80μm) |
| Thermal Conductivity (LF) | A | W/m·K | 7 | 3 |
| Breakdown Voltage DC | A | kV | >10 | >10 |
| Breakdown Voltage AC | A | kV | 6 | 6 |
| Peel Strength (35μm) | A | N/mm | 1.7 | 1.5 |
| Flammability | UL94(A) | - | 94V-0 | 94V-0 |
| Tracking Resistance | A (IEC method) |
V | 600 | 600 |
| Tg | TMA | deg.C | 130 | 100 |
| Young's Modulus | A | GPa | 40 | 21 |
| Water Absorption | D-24/23 | % | 0.3 | 0.3 |
| Chemical Resistance | 3%NeOH 40deg.C 3min |
- | OK | OK |
|---|
* These are representative values, not specification

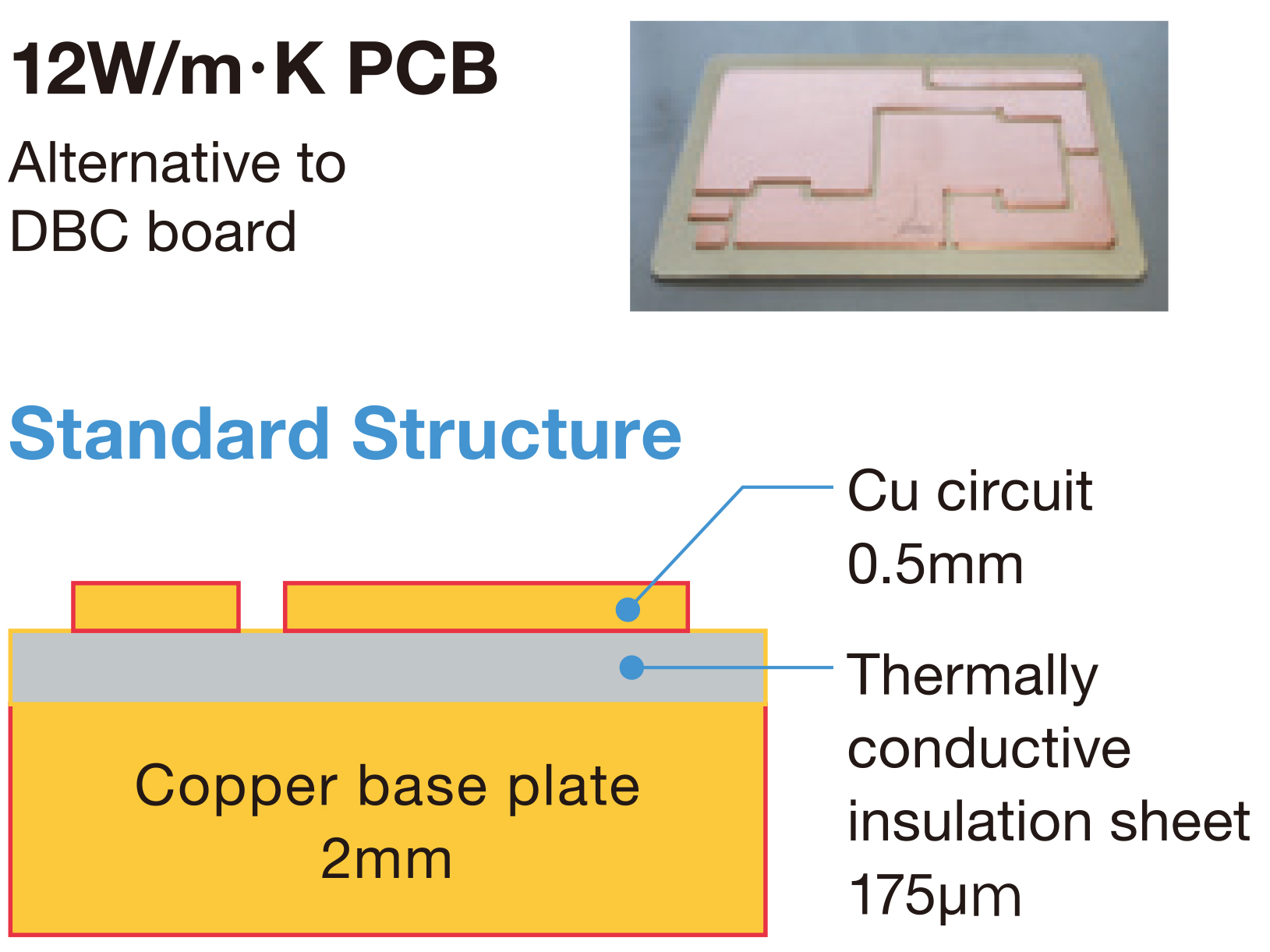

12W/m·K PCB
| Test items | Conditions | CLC-5201 (175µm) |
|
| Thermal Conductivity | w/m・K | Laser flash / 25°C | >12 |
|---|---|---|---|
| w/m・K | Laser flash / 175°C | >10 | |
| Breakdown Voltage | kVrms | AC / 25℃ | >8 |
| Volume Resistivity | Ω・cm | DC, 1 kV, 1 min / 25°C | 1E+16 |
| Ω・cm | DC, 1 kV, 1 min/ 175°C | 1E+13 | |
| Dielectric Constant | ― | 1MHz | 4.6 |
| Tg | ℃ | TMA | >200 |
* The data table shown are representative values, not guaranteed values.
Application example
