Plating Thermoset Composite Integration Technology (PM-Plamec series)
Reliable Thermoset-resin for Plating contributes
to the Conversion
of Electrification/Electronic Components to Resin
Features
- High Reliability for Resin Plating
- Possible to Provide Characteristics Such as Electromagnetic Wave Shielding Properties and Gas Barrier Properties
[Application Example]

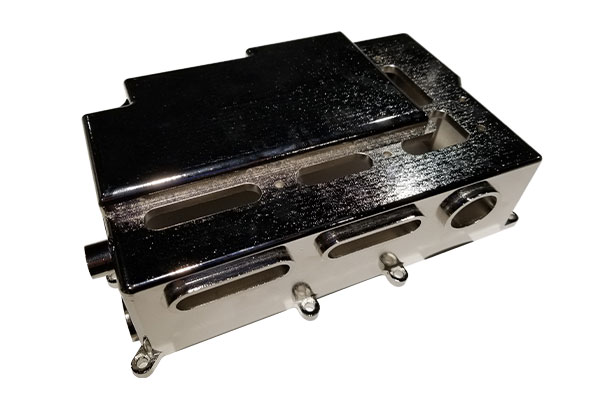

- Inverter Housing
- Air Conditioner Housing
Two Materials (Patent Pending )
| Item | Unit | PM-5945 Isotropic |
PM-5940 High strength |
|---|---|---|---|
| Flexural Strength | MPa | 180 | 200 |
| Average CTE | ppm | 23 | 20 |
| Isotropic | - | 1.2 | 2.1 |
| Peel Strength | N/cm | 6.3 | 5.4 |
Cross Section

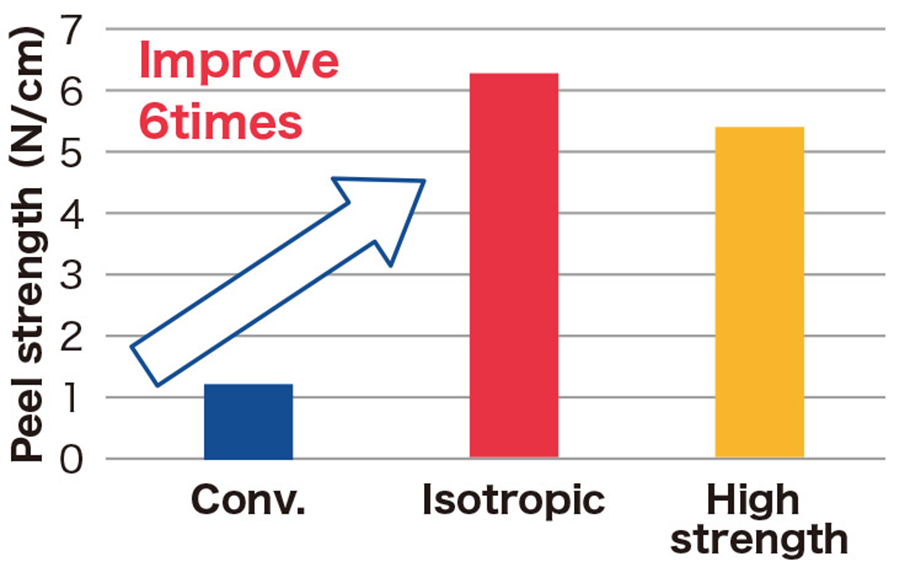

Peel Strength

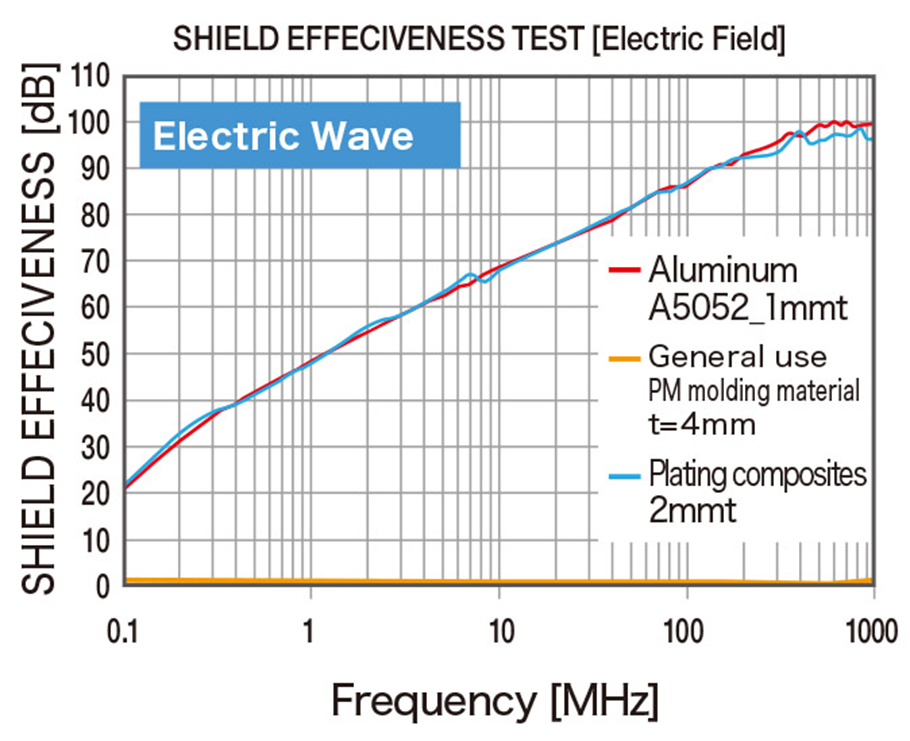

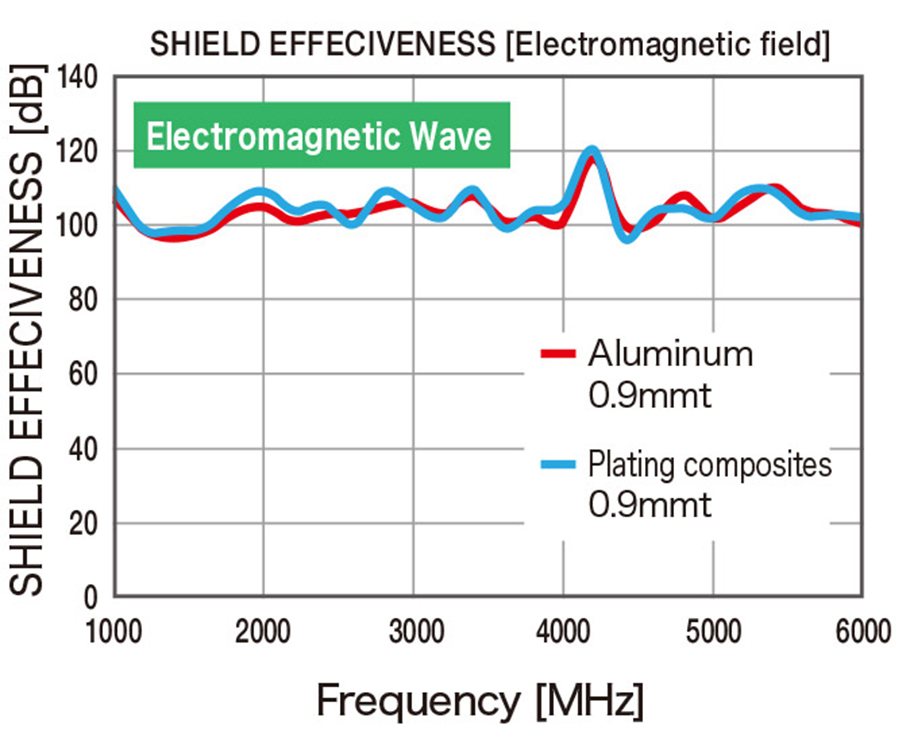

Electromagnetic Shielding
Plating Provides Electromagnetic Shielding Properties.
Material: Specialized for Plating
Method: KEC／GHz KEC
| Frequency: | 100kHz～1GHz（KEC.） 1GHz～6GHz（GHz KEC.） |

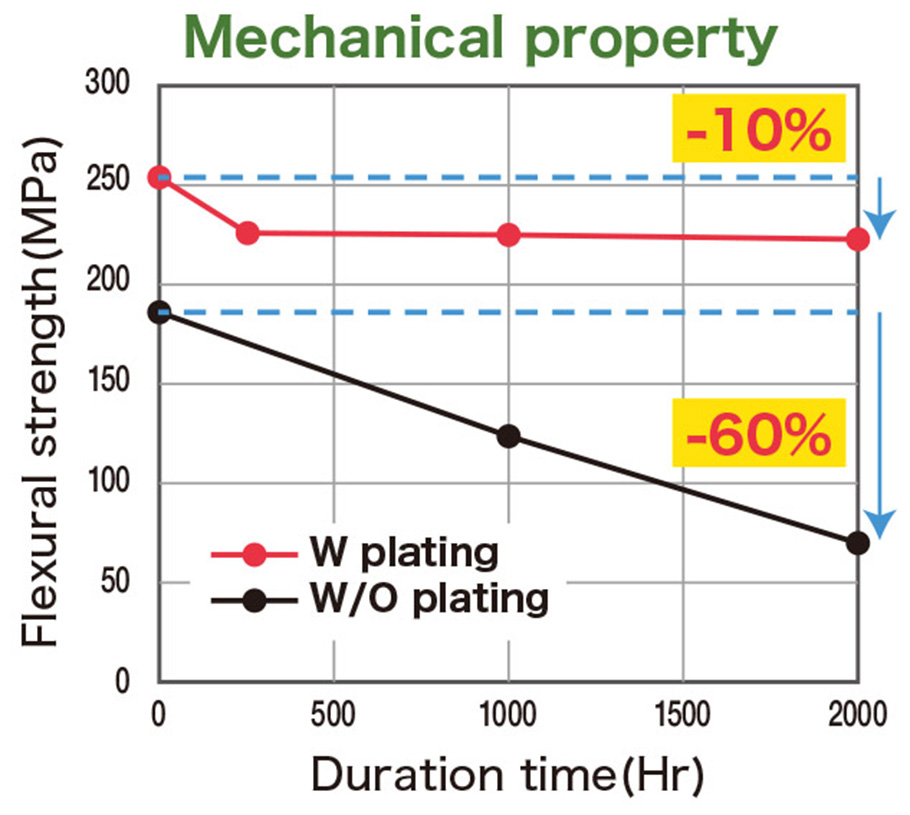

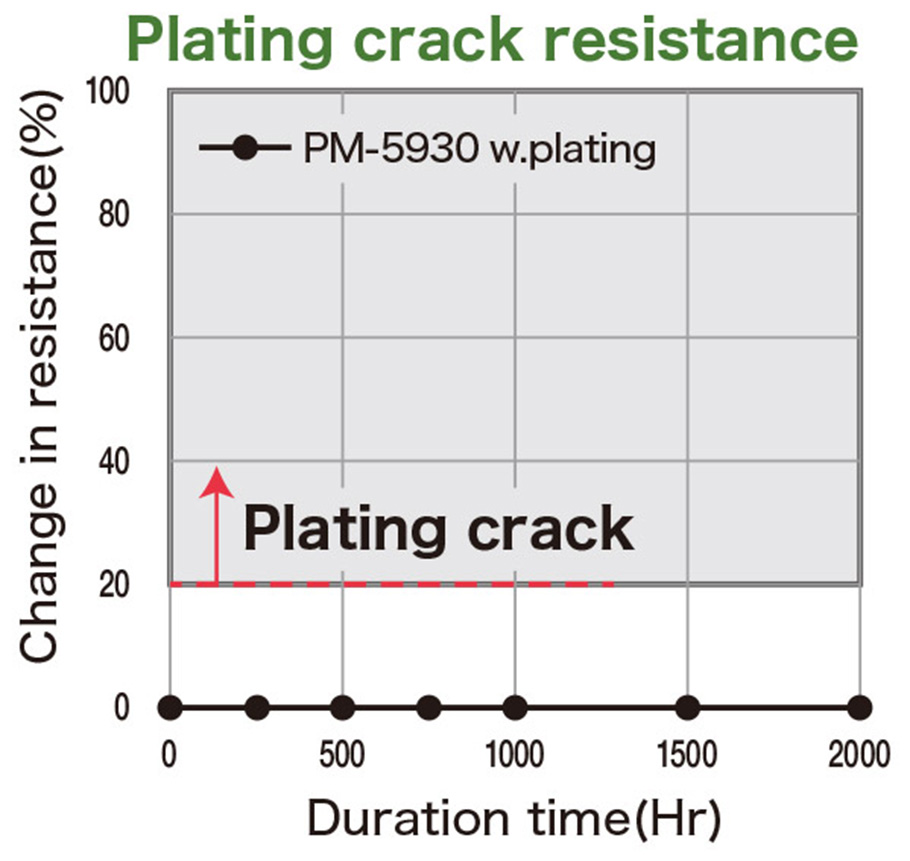

Long Term Reliability/Heat Ageing Test
Plating Improves the Heat Resistance of Molded Products.
| Test method: | JISK6271,JISH8504 |
| Material: | PM-5930 |
| Aging Temp: | 220degC |
| Plating: | Electroless Ni/Electrolytic Cu & Ni (double side) |
| Thickness: | 35um(double side total) |
