Photosensitive Insulating Materials for Power Devices
Photosensitive Insulating Materials with Thick Film Processability and High Reliability
Advantage
Cured Film Properties Reliability
| Characteristics | Unit | CRC-9630 |
|---|---|---|
| Sensitivity@10μmt | mJ/cm² | 630 |
| Remaining Film Rate | % | 82 |
| Cross-Sectional Taper Angle |
deg | 52 |
| Tg | ℃ | 300 |
| Td5 | ℃ | 430 |
| Elongation (Ave.) | % | 60 |
| Water absorption rate | % | 0.3 |
Reliability
| Dielectric Breakdown Strength | |
|---|---|
| CRC-9630 | 300 [kV/mm] |
Adhesion to substrate
| Substrate | CRC-9630 |
|---|---|
| Si | 0/100 |
| Cu | 0/100 |
| Al | 0/100 |
Core Technology
Low temperature curable

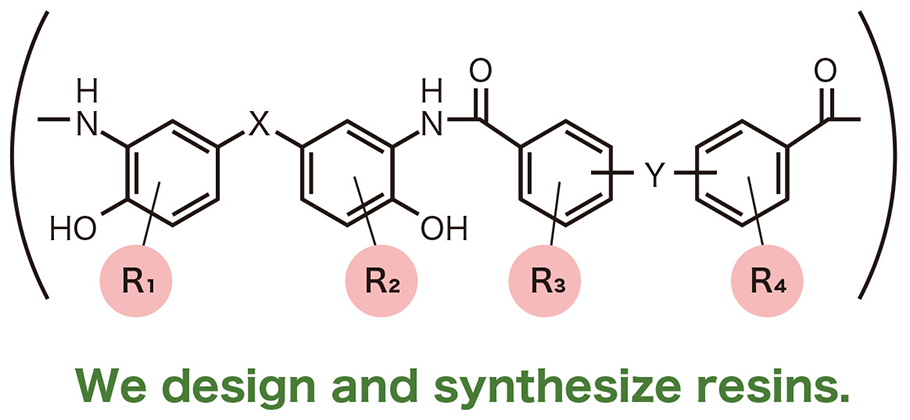

High Performance Formulation Design
Application examples
