- KD Acrylic Modified PVC Seat
KD Acrylic Modified PVC Seat
（SKD#4000 Metallic Color）
High-Strength, Flame-Retardant
Interior Material Suitable for Sheet Forming (Vacuum/Pressure Forming)
Advantage
- By Vacuum and Air-Pressure Forming, Some Kinds Formation Can Be Processed into the Shape.
- It's Excellent Seat Material in the Formation Workability, Impact Resistance, and Chemical Resistance.
- UL94 V-0 and 5V (It's Decided Every Thickness)
- Heat Forming Processing Is Suitable for the Various Kinds and Small Quantities
- We Have 31 Kinds of Color by the Standard (Possible to Produce the Color You Designate).
- Achieve a Metallic Appearance Without Painting.
Reduce Environmental Impact.
General Properties
| Property | Test Method | Unit | KD PVC | PC | ABS | PMMA |
| Specific Gravity | ASTM D 792 | ー | 1.35 | 1.20 | 1.07 | 1.19 |
| Izod impact Strength | ASTM D 256 | J/m | 780 | 780 | 200 | 19 |
| Heat Deflection Temperature | ASTM D 648 | ℃ | 73 | 140 | 85 | 97 |
| Flammability | UL94 | ー | V0～5VA | HB～V2 | HB | HB |
| Molding Magnification | Internal | × | 6 | 4 | 5 | 4 |
Application
Industrial Equipment Exterior
Exterior for Robot

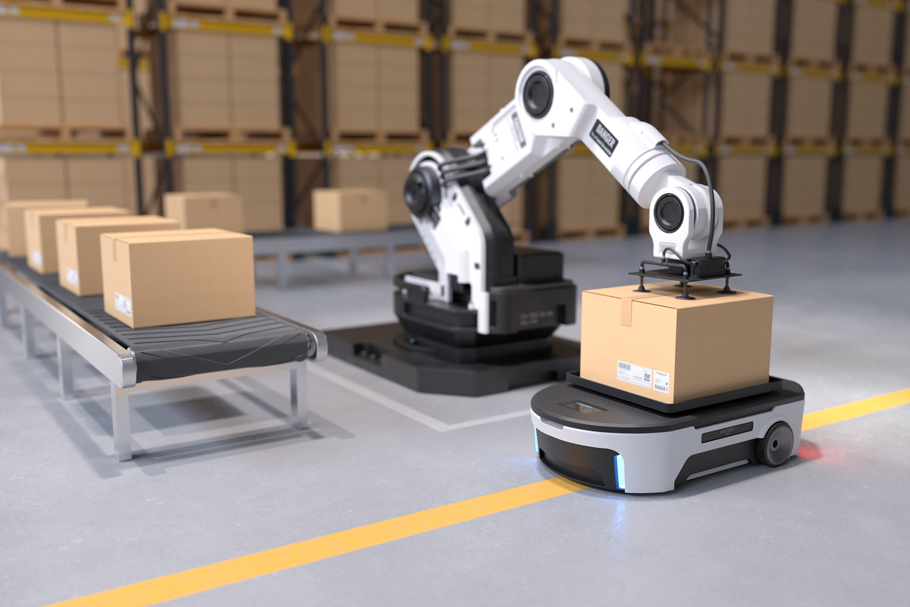

Exterior for AGV

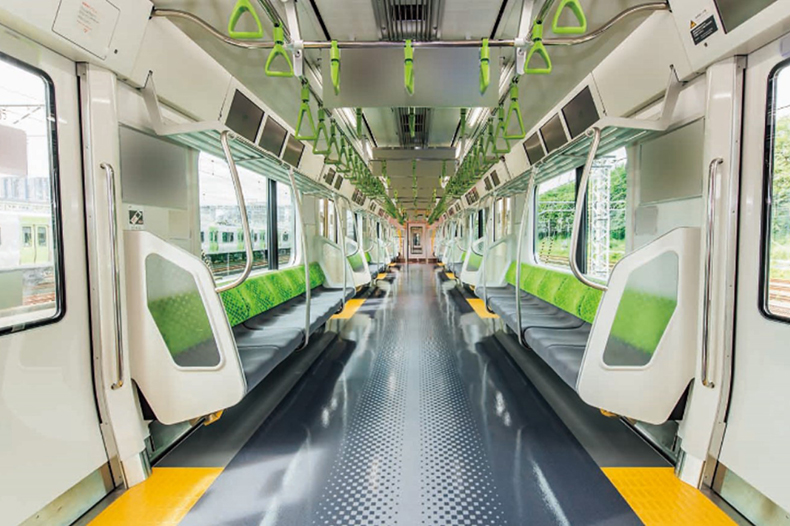

Interior of a Railway Vehicle

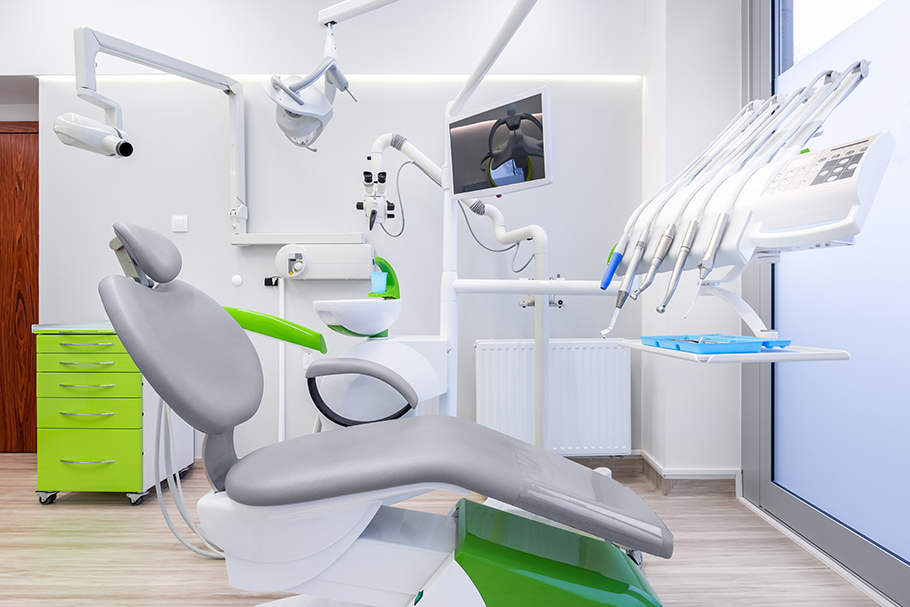

Medical Equipment Exterior

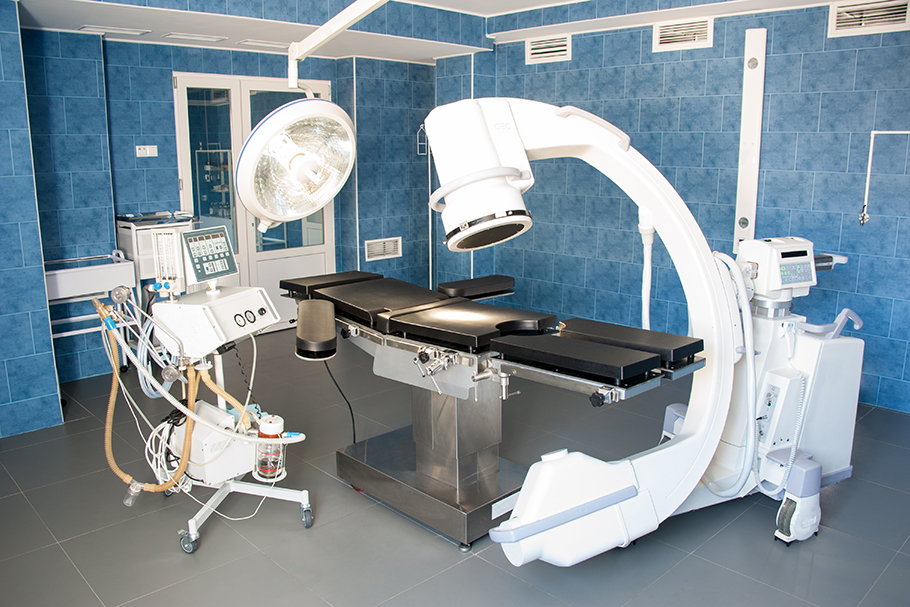

Medical Equipment Exterior
