Halogen Free Flame Retardant Polycarbonate Sheet
for Insulation
Thickness from 0.05 mm to 0.83 mm,
Flame Retardant Sheet for Electric Insulation,
UL 94
Flammability: V-0, VTM-0
Advantage
- ①The Only CTI PLC: 0 (600 V or Over) Halogen-Free PC
Sheet (V Series)
[According to Our Research] - ②Design for Environment
・No Intentional Addition of PFAS* (V Series)
*Per- and Polyfluoroalkyl Substances・Compliance with ErP (Energy-Related Products) Directive, Lot 5

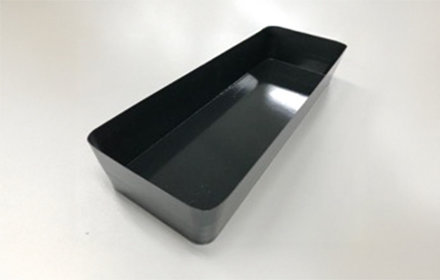

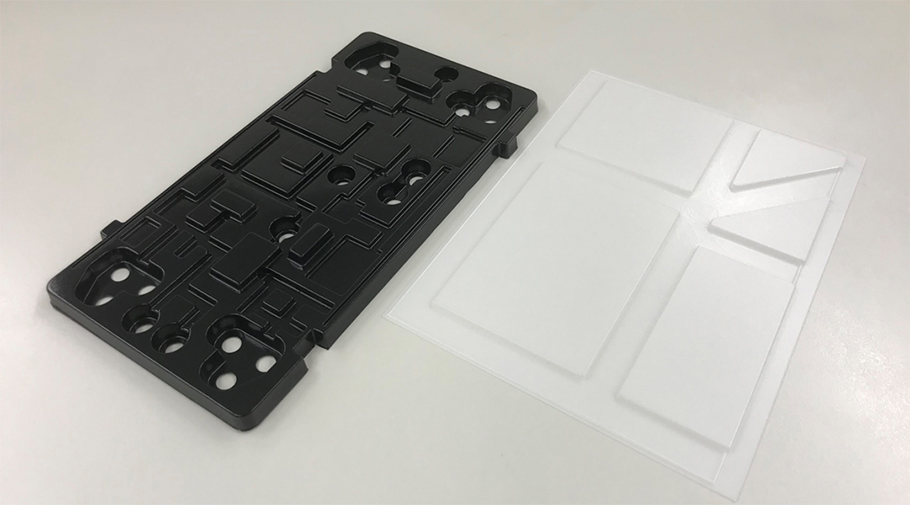

- ③Thinner Insulation Parts Possible, Made by Vacuum Forming Than by Injection
- ④Standard Anti-Static Treatment on Both Sides
Intended Proposal

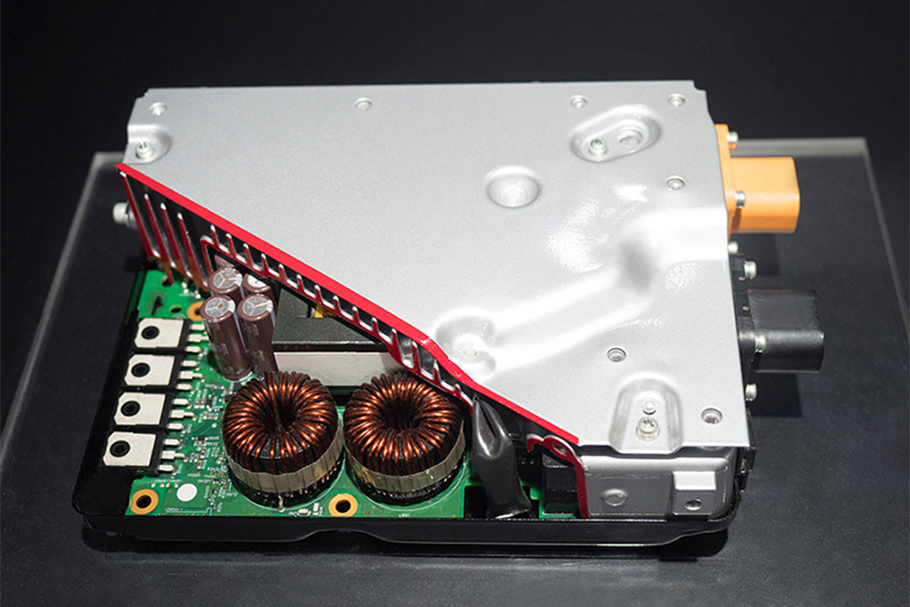

Insulation Sheet for Inverter, Converter of EV

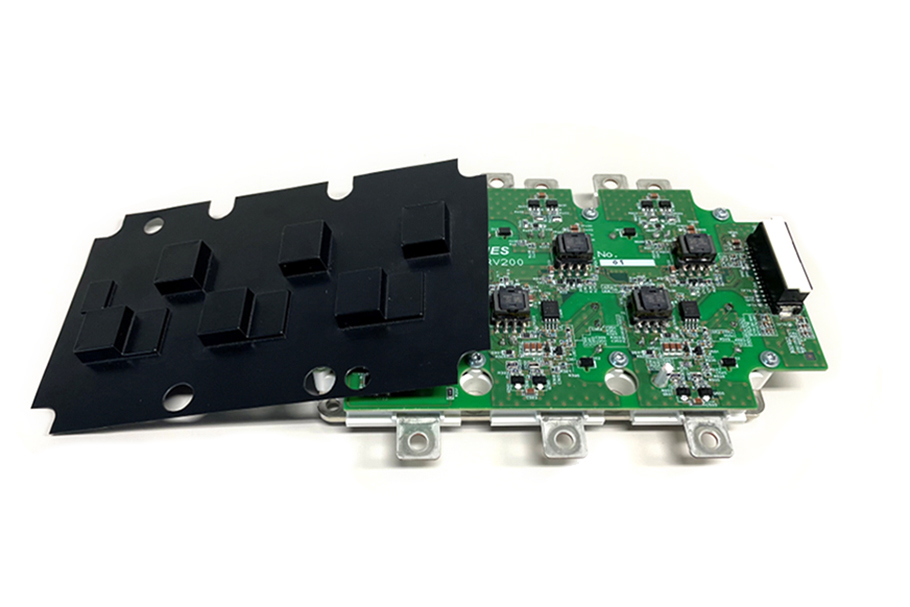

Insulation Parts Near PCB
Internal Insulation of Electronic Devices

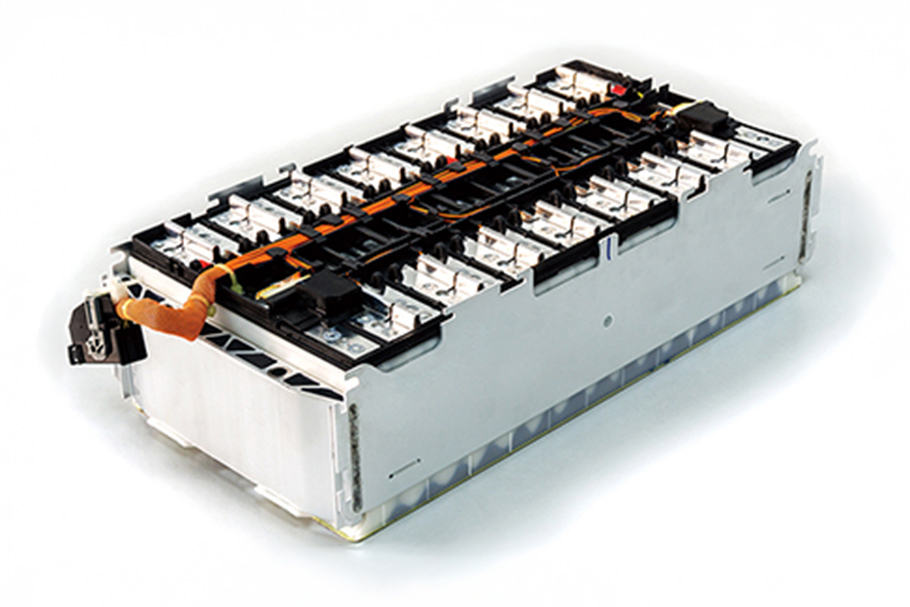

Insulation Component around Battery
Standard
| Article No. | Color | Thickness (mm) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.05 | 0.075 | 0.1 | 0.125 | 0.15 | 0.2 | 0.25 | 0.41 | 0.5 | 0.83 | ||
| VHF150MAB | Natural | V-0 | V-0 | V-0 | |||||||
| VHF850MAB | Black | V-0 | V-0 | V-0 | |||||||
| PHF151MAB | Half clear | VTM-0 | VTM-0 | ||||||||
| PHF851MAB | Black | VTM-0 | VTM-0 | VTM-0 | |||||||
| PHF860MAB | Black | VTM-2 | VTM-2 | VTM-0 | VTM-0 | ||||||
Product
- Roll form: 600mm × 100～600m
- Sheet form: 1200 × 600mm
