IoTPower Module

Functional Materials
Supporting High-Efficiency Energy Conversion

High-Insulation & High-Heat-Resistant Diallyl Phthalate Resin Molding Compound

Combining Tracking Resistance and Heat Resistance to Meet the Needs of Higher Voltage Applications

Features

Combining Tracking Resistance and Heat Resistance

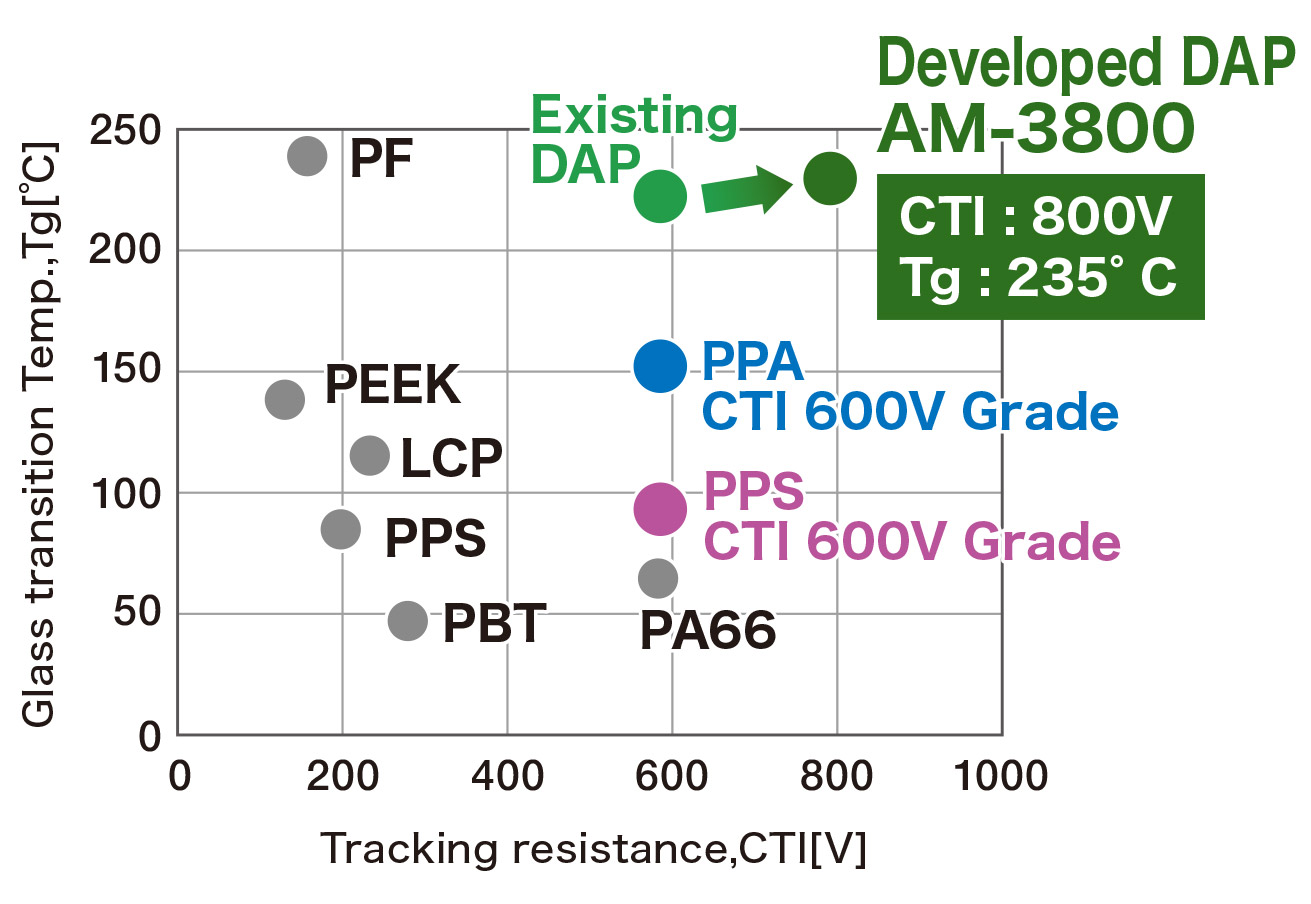

Comparison with Other Resins
Tracking Resistance
Excellent Moisture Resistance and Heat Deterioration Resistance
Long-Time Reliability After 2000 hr of Heat Treatment AM-3800
（Developed grade）		 PPS
(CTI600V)		 PPA
(CTI600V)
Moisture Deterioration Resistance: 85 ℃ × 95％RH
Tracking Resistance (800 V) ◎ △ △
Dielectric Strength Voltage ◎ ◎ ◎
Volume Resistivity ○ ○ ×
Mechanical Strength ○ ○ ○
Heat Deterioration Resistance: 160 ℃
Tracking Resistance (800 V) ○ × ×
Dielectric Strength Voltage ◎ ◎ ◎
Volume Resistivity ◎ ◎ ×
Mechanical Strength ◎ ◎ ×

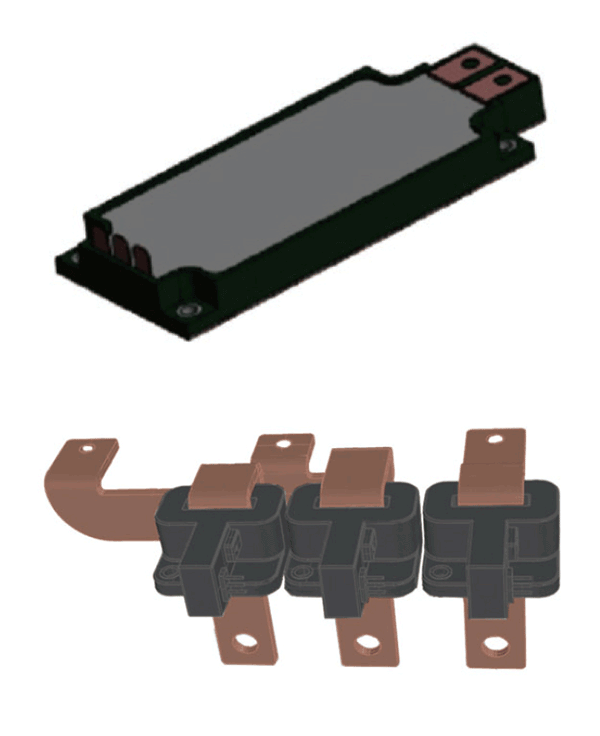

Good Injection Moldability Enables the Molding of Thin-Walled Parts

Anticipated application fields and components

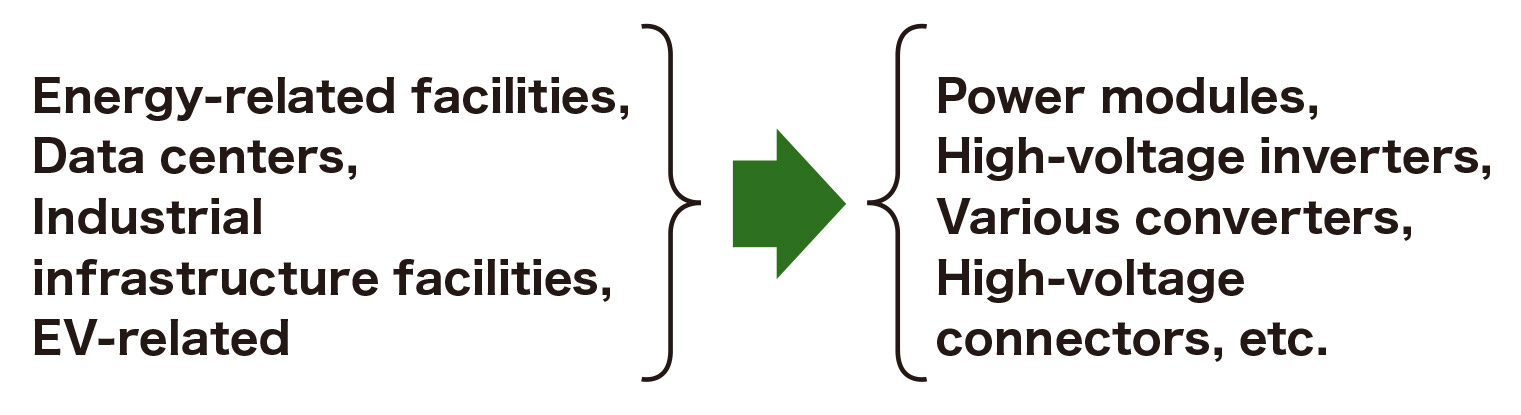

Anticipated application fields and components Energy-related facilities,Data centers,Industrial infrastructure facilities, EV-related→Power modules, High-voltage inverters, Various converters, High-voltage connectors, etc.
